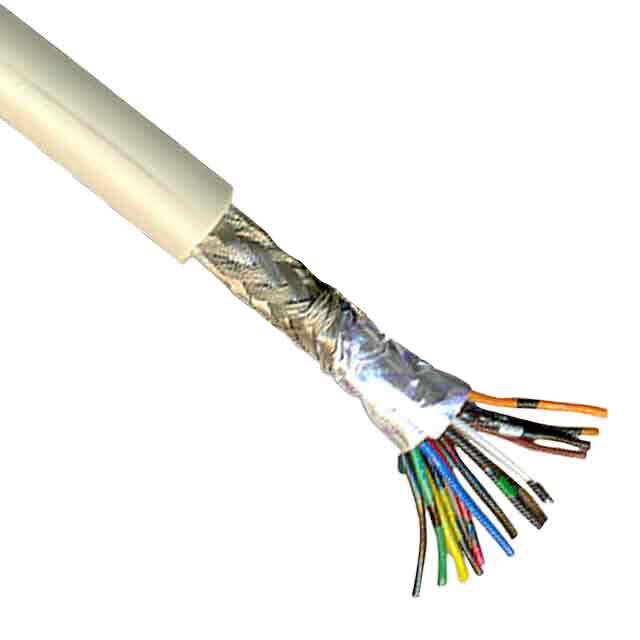

3750/26 100 Real Image
Same model may have multiple batches, images only for reference.

3750/26 100

Part No 3750/26 100
Manufacturer 3M
Catalog Multiple Conductor Cables
Description MULTI-PAIR 26CON 26AWG GRAY 100' / 26 (13 Pair Twisted) Conductor Multi-Pair Cable Gray 26 AWG Foil, Braid 100.0' (30.5m)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cables, Wires - Multiple Conductor Cables
Mfr 3M
Series 3750
Package Spool
Cable Type Multi-Pair
Number of Conductors 26 (13 Pair Twisted)
Wire Gauge 26 AWG
Conductor Strand 7/34
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.370" (9.40mm)
Shield Type Foil, Braid
Length 100.0' (30.5m)
Jacket Color Gray
Voltage 300 V
Usage Communication, Computer, Control
Jacket (Insulation) Thickness 0.0260" (0.660mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Material Aluminum; Copper, Tinned
Shield Coverage 100%, 90%
Base Product Number 3750
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.49.3080
Win Source Part Number 1337345-3750/26 100
Ultra Librarian 3D Model Ultra Librarian 3750/26 100 CAD Model

Description

The 1337345-3750/26 100 is a 26 AWG, 13-pair twisted, multiple conductor cable from the 3750 series.

  • Cable Type: Multi-Conductor
  • Number of Conductors: 26 (13 Pair Twisted)
  • Wire Gauge: 26 AWG
  • Conductor Strand: 7/34
  • Conductor Material: Copper, Tinned
  • Jacket (Insulation) Material: Poly-Vinyl Chloride (PVC)
  • Jacket Color: Gray
  • Shield Type: Foil and Braid
  • Length: 100.0' (30.48m)
  • Voltage: 300V
  • Usage: Communication, Computer, Control
  • Packaging: Spool
