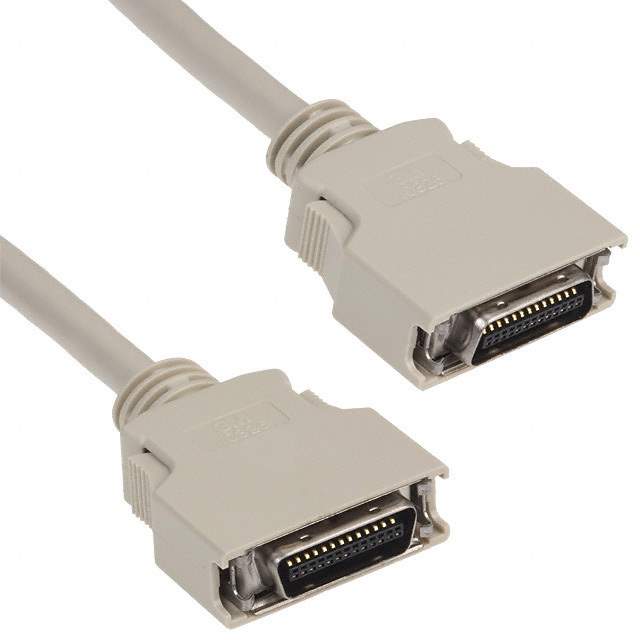

14526-EZ5B-100-02C

Part No 14526-EZ5B-100-02C
Manufacturer 3M
Catalog D - Shaped, Centronics Cables
Description CABLE ASSY 26POS MDR-MDR PLUG 1M / Cable Assembly Data 1m 30AWG SCSI to SCSI 26 to 26 POS PL-PL Box
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Cable Assemblies
Manufacturer 3M
Series Mini D Ribbon (MDR)
Configuration Centronics 26 pos Male to Male
Length 3.28' (1.00m)
Cable Type Round, Beige
Shielding Shielded
Style Bidirectional
Win Source Part Number 771139-14526-EZ5B-100-02C
Popularity Medium
Supply and Demand Status Limited
Family Name 14520
Introduction Date April 01, 2006
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian 14526-EZ5B-100-02C CAD Model

Description

The 14526-EZ5B-100-02C is a cable assembly manufactured by 3M.

  • Category: Cable Assemblies
  • Win Source Part Number: 771139
  • Cable Type: Mini D Ribbon (MDR)
  • Length: 3.28' (1.00m)
  • Shape: Round
  • Color: Beige
  • Shielding: Shielded
  • Configuration: Centronics 26 pos Male to Male
  • Family Name: 14520
  • Introduction Date: April 01, 2006
  • Estimated EOL Date: 2025
