Same model may have multiple batches, images only for reference.

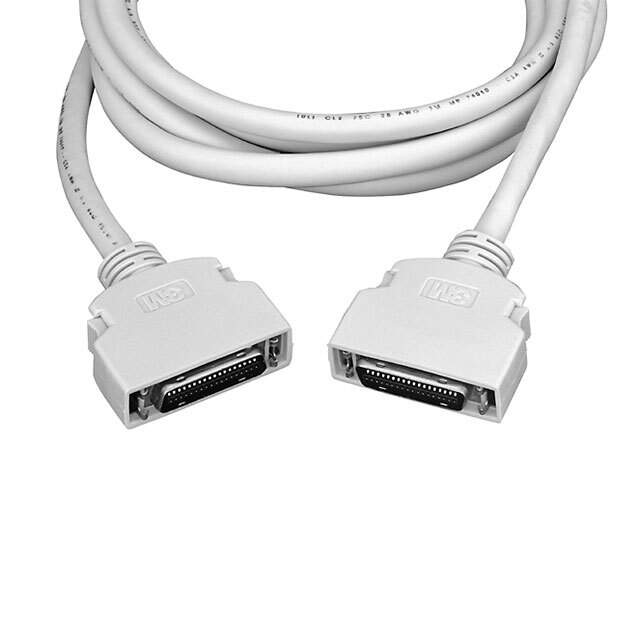

14526-EZHB-100-0QC Real Image
Same model may have multiple batches, images only for reference.

14526-EZHB-100-0QC

Part No 14526-EZHB-100-0QC
Manufacturer 3M
Catalog D - Shaped, Centronics Cables
Description CABLE ASSY MDR 26POS M-M 1.0M / Cable Assembly Data 1m 28AWG SCSI to SCSI 26 to 26 POS PL-PL Box
Datasheet
14526-EZHB-100-0QC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Cable Assemblies
Manufacturer 3M
Series Mini D Ribbon (MDR)
Configuration Centronics 26 pos Male to Male
Length 3.28' (1.00m)
Cable Type Round, Beige
Shielding Shielded
Style Bidirectional
Win Source Part Number 775601-14526-EZHB-100-0QC
Popularity Medium
Supply and Demand Status Limited
Family Name 14526
Introduction Date April 01, 2006
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 14526-EZHB-100-0QC CAD Model

Description

The 775601-14526-EZHB-100-0QC is a cable assembly manufactured by 3M.

  • Series: Mini D Ribbon (MDR)
  • Shielding: Shielded
  • Length: 3.28' (1.00m)
  • Shape: Round
  • Color: Beige
  • Configuration: Bidirectional
  • Connector Style: Centronics 26 pos Male to Male
  • Family: 14526
  • Category: Cable Assemblies
  • Introduction Date: April 01, 2006
  • ECCN: EAR99
  • EOL Date: 2027 (Estimated)
  • Supply/Demand Status: Limited
