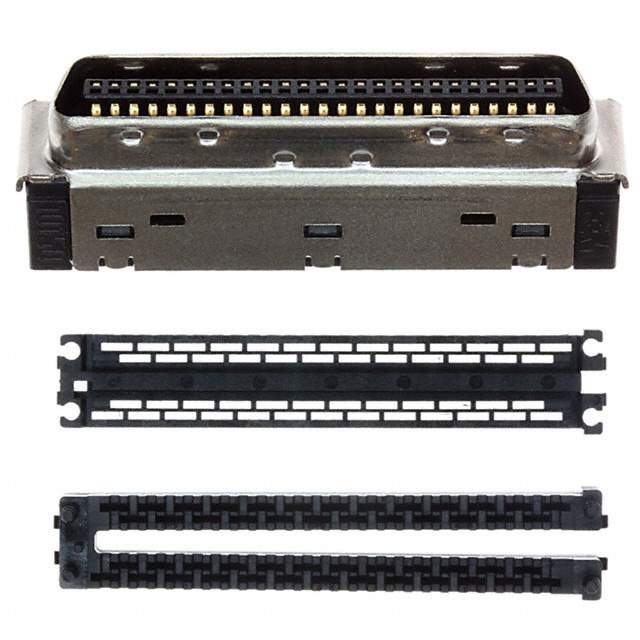

10150-6000EC Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>Centronics Connectors
Manufacturer 3M
Packaging Tray
Connector Style Center Strip Contacts
Connector Type Plug
Number of Positions 50
Number of Rows 2
Mounting Free Hanging (In-Line)
Termination IDC
Features Shielded
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 10150
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 4901690086434,JE150174892,7000007374,101506000EC,MPB50A,90169008643
Standard Package 100
Win Source Part Number 1333233-10150-6000EC
Ultra Librarian 3D Model Ultra Librarian 10150-6000EC CAD Model

Description

The 1333233-10150-6000EC is a shielded plug connector from 3M with a number of positions of 50 and a number of rows of 2.

  • Positions: 50
  • Rows: 2
  • Termination: IDC
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Connector Style: Center Strip Contacts
  • Packaging: Tray
  • Standard Package: 100
  • ECCN: EAR99
  • HTSUS: 8536.69.4051
  • RoHS Compliant: Yes
