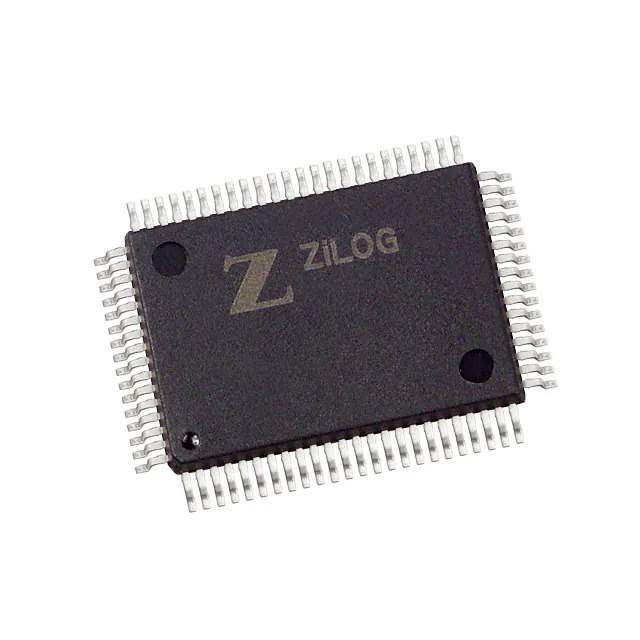

Same model may have multiple batches, images only for reference.

Z8S18020FSG

Name: Z8S18020FSG
Brand: Zilog
SKU: 847168
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	Z8S18020FSG
Manufacturer	Zilog
Catalog	Embedded - Microprocessors
Description	IC MPU Z180 20MHZ 80QFP / Z8S180 Microprocessor IC Z180 1 Core, 8-Bit 20MHz 80-QFP
Datasheet	Z8S18020FSG Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs) - Embedded - Microprocessors
Mfr	Zilog
Series	Z180
Package	Tray
Product Status	Active
Core Processor	Z8S180
Number of Cores/Bus Width	1 Core, 8-Bit
Speed	20MHz
RAM Controllers	DRAM
Graphics Acceleration	No
Voltage - I/O	5.0V
Temperature Range - Operating	0°C ~ 70°C (TA)
Mounting Type	Surface Mount
Package / Case	80-BQFP
Supplier Device Package	80-QFP
Additional Interfaces	ASCI, CSIO, UART
Base Product Number	Z8S18020
Standard Package	66 pcs
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.31.0001
Win Source Part Number	847168-Z8S18020FSG
Ultra Librarian 3D Model	Ultra Librarian Z8S18020FSG CAD Model

Description

The Z8S18020FSG is an integrated circuit microprocessor from the Z180 series, manufactured by Zilog. Z8S18020FSG from Zilog.

Series: Z180
Core: 1 Core, 8-Bit Z8S180
Speed: 20MHz
RAM Controllers: DRAM
Interfaces: ASCI, CSIO, UART
Voltage: 5.0V
Package: 80-BQFP
Temperature Range: 0°C to 70°C
Product Status: Active
