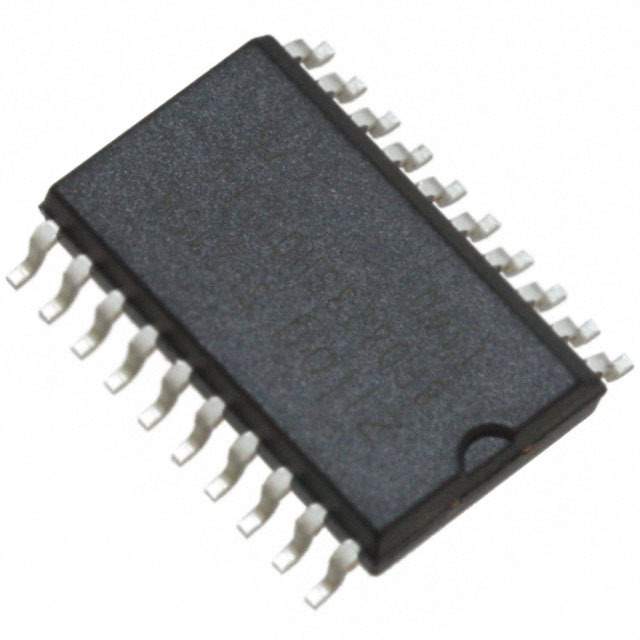

Z8F0823SH005EG2156 Real Image
Same model may have multiple batches, images only for reference.

Z8F0823SH005EG2156

Part No Z8F0823SH005EG2156
Manufacturer Zilog
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 8KB FLASH 20SOIC / eZ8 series Microcontroller IC 8-Bit 5MHz 8KB (8K x 8) FLASH 20-SOIC
Datasheet
Z8F0823SH005EG2156 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Zilog
Series Encore!® XP®
Package Tube
Core Processor eZ8
Core Size 8-Bit
Speed 5MHz
Connectivity IrDA, UART/USART
Peripherals Brown-out Detect/Reset, LED, POR, PWM, WDT
Number of I/O 16
Program Memory Size 8KB (8K x 8)
Program Memory Type FLASH
RAM Size 1K x 8
Supply Voltage - Operating 2.7V ~ 3.6V
Data Converters A/D 7x10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting SMD (SMT)
Package / Case 20-SOIC (0.295", 7.50mm Width)
Supplier Device Package 20-SOIC
Base Product Number Z8F0823
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Other Names -269-2034-ND,269-2034,-269-2034-5,-269-2034,269-2034-ND,-269-1038-ND,269-2034-5
Standard Package 38
Win Source Part Number 993491-Z8F0823SH005EG2156
Ultra Librarian 3D Model Ultra Librarian Z8F0823SH005EG2156 CAD Model

Description

The Zilog Z8F0823SH005EG2156 is an 8-bit microcontroller from the Encore!® XP® series.

  • Manufacturer: Zilog
  • Series: Encore!® XP®
  • Core Processor: eZ8
  • Speed: 5MHz
  • Program Memory Size: 8KB (8K x 8)
  • Program Memory Type: FLASH
  • RAM Size: 1K x 8
  • I/O Lines: 16
  • Data Converters: A/D 7x10b
  • Mounting Type: SMD (SMT)
  • Package: 20-SOIC (0.295", 7.50mm Width)
  • Temperature Range: -40°C ~ 105°C (TA)
  • Ideal for: Embedded-Microcontroller Applications
