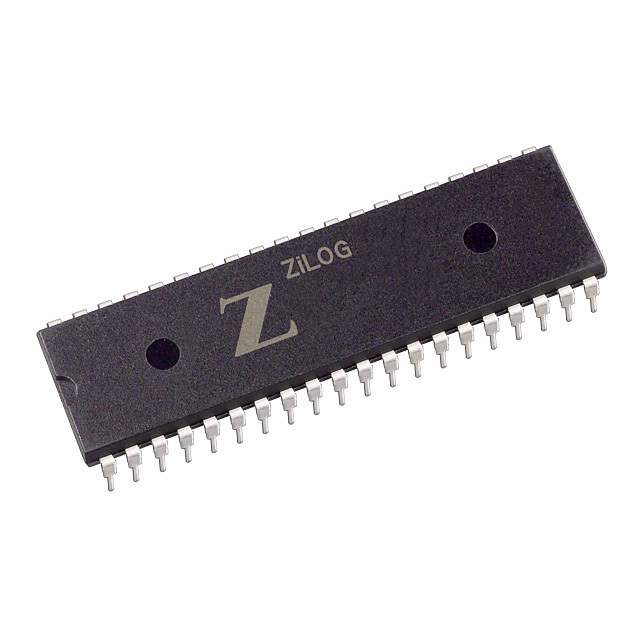

Z86E2304PSC Real Image
Same model may have multiple batches, images only for reference.

Z86E2304PSC

Part No Z86E2304PSC
Manufacturer Zilog
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 8KB OTP 40DIP
Datasheet
Z86E2304PSC Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Zilog
Packaging Tube/Rail
Status Obsolete(EOL)
Core Processor Z8
Part Core Size 8-Bit
Speed(Frequency) 4MHz
Number of I/O 32
Program Memory Size 8KB (8K x 8)
Program Memory Type OTP
Data RAM Size 236 x 8
Supply Voltage - Operating 4.5 V to 5.5 V
Oscillator Type External
Temperature Range - Operating 0°C to 70°C (TA)
Dimension 40-DIP (0.620", 15.75mm)
Win Source Part Number 057933-Z86E2304PSC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian Z86E2304PSC CAD Model

Description

The Zilog Z86E2304PSC is an integrated circuit designed for use in electronic devices.

  • Manufacturer: Zilog
  • Package: Tube/rail
  • Core Processor: Z8
  • I/O: 32
  • Program Memory Size: 8KB (8K x 8)
  • Program Memory Type: OTP
  • Data Converters: None
  • Category: Integrated Circuits
  • Status: Obsolete (EOL)
  • Supply Voltage: 4.5V to 5.5V
  • Speed (Frequency): 4MHz
  • Supply and Demand Status: Limited
