The ZXMP6A13GTC is a P-channel enhancement mode MOSFET from Zetex Semiconductors (now part of Diodes Incorporated). It is designed for load switching, high-side switching and power management applications. Featuring a low on-state resistance (RDS(on)) and logic level gate drive, it's suitable for use in portable and battery-powered devices.

Applications:

• Load Switching
• High-Side Switching
• Power Management
• Battery Protection
• Portable Devices

Features:

• P-Channel Enhancement Mode MOSFET
• Low On-Resistance (RDS(on))
• Logic Level Gate Drive
• Fast Switching Speed
• Low Gate Charge
• Surface Mount Package (SOT23)

Benefits:

• Efficient load switching and power management
• Reduced power losses due to low RDS(on)
• Simplified gate drive circuitry
• Compact solution for space-constrained designs
• Suitable for battery-powered applications

Additional Details:

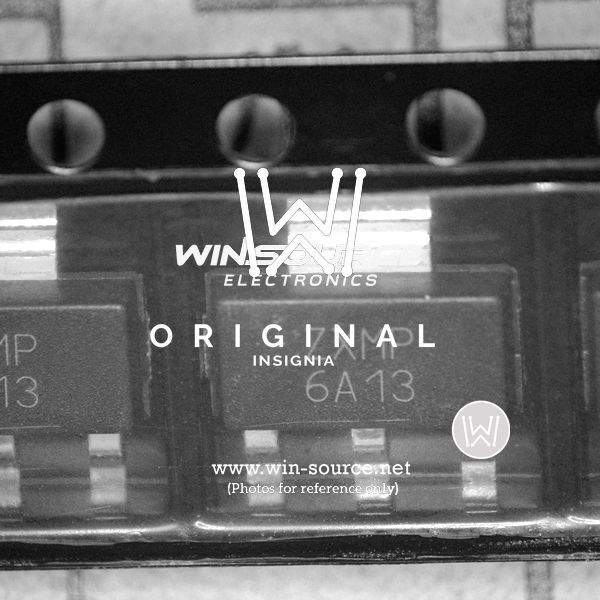

The ZXMP6A13GTC is typically supplied in a SOT23 package. Key specifications include a drain-source voltage (VDS) rating of -60V, a continuous drain current (ID) rating (dependent on package and thermal conditions), and a gate-source voltage (VGS) rating of ±20V. The RDS(on) is specified at different VGS values. Its logic level gate drive is a significant advantage, allowing direct control from microcontrollers and other logic circuits. The threshold voltage will be negative and must be considered when designing drive circuits.

Thermal management is essential, especially at higher current levels. The SOT23 package can have limited power dissipation, so ensure proper PCB layout for heat sinking. Protection circuitry should be implemented to protect the MOSFET from overvoltage and overcurrent. Refer to the datasheet for the component.
