Same model may have multiple batches, images only for reference.

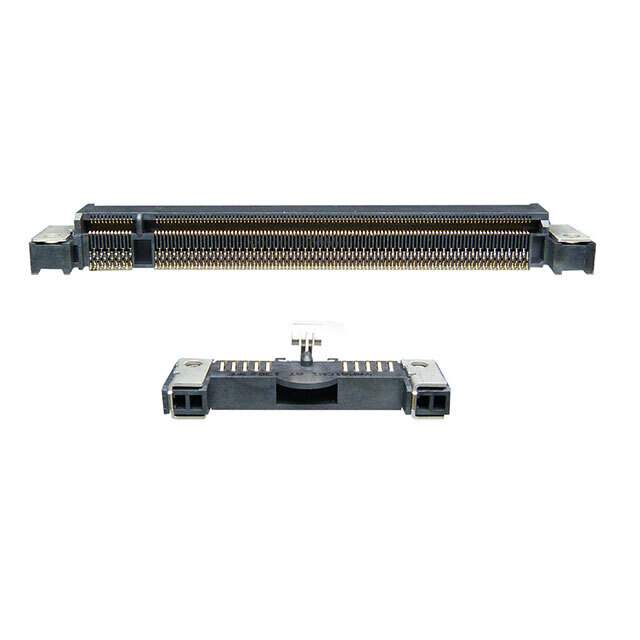

BECHS-0.5-230-S9-AF-REDC1 Real Image
Same model may have multiple batches, images only for reference.

BECHS-0.5-230-S9-AF-REDC1

Part No BECHS-0.5-230-S9-AF-REDC1
Manufacturer Yamaichi
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FML 230POS 0.020 / 230 Position Female Connector Non Specified - Dual Edge Gold 0.020" (0.50mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Card Edge Connectors - Edgeboard Connectors
Mfr Yamaichi Electronics
Series BEC
Package Tape & Box (TB)
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions 230
Card Thickness 0.047" (1.20mm)
Number of Rows 2
Pitch 0.020" (0.50mm)
Read Out Dual
Features Board Guide, Solder Retention
Mounting Type Surface Mount, Right Angle
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Temperature Range - Operating -40°C ~ 80°C
Material - Insulation Liquid Crystal Polymer (LCP)
Standard Package 1
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1340558-BECHS-0.5-230-S9-AF-REDC1
Ultra Librarian 3D Model Ultra Librarian BECHS-0.5-230-S9-AF-REDC1 CAD Model

Description

The BEC series edgeboard connectors are designed to provide a reliable and secure connection for printed circuit boards.

  • Positions: 230
  • Pitch: 0.020 inches
  • Color: Black
  • Features: Board Guides, Solder Retention
  • Connector Type: Female
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0 microns
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Mounting Type: Surface Mount
  • Mounting Orientation: Right Angle
  • Operating Temperature: -40°C to 80°C
  • Packaging: Tape and Box
  • ECCN: EAR99
  • REACH: Unaffected
