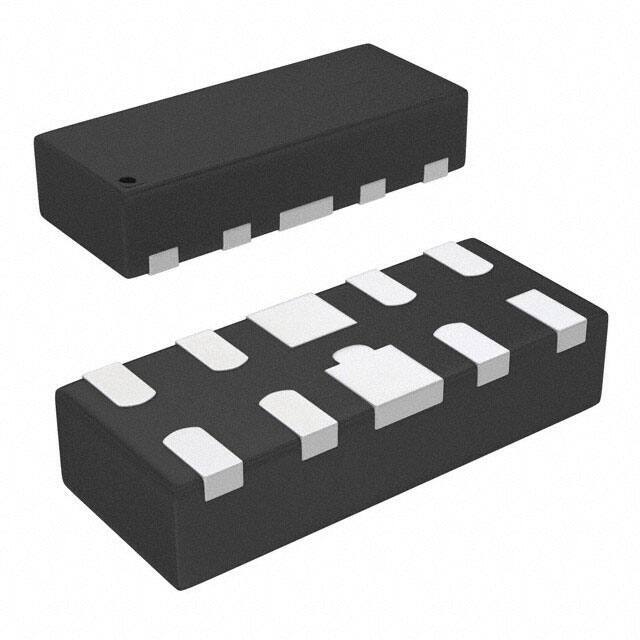

Same model may have multiple batches, images only for reference.
UBQ10A03L04 Yageo
Same model may have multiple batches, images only for reference.

UBQ10A03L04

Part No UBQ10A03L04
Manufacturer Yageo
Catalog TVS - Diodes
Description TVS ESD, QFN-10, 3.3V, 15V, REEL / 15V Clamp 4A (8/20µs) Ipp Tvs Diode Surface Mount 10-QFN (2.5x1)
Datasheet
UBQ10A03L04 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr YAGEO
Series UBQ10A03L04
Package Tape & Reel
Product Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 4
Voltage - Reverse Standoff (Typ) 3.3V (Max)
Voltage - Breakdown (Min) 4.5V
Voltage - Clamping (Max) @ Ipp 15V
Current - Peak Pulse (10/1000µs) 4A (8/20µs)
Power - Peak Pulse -
Power Line Protection Yes
Applications DVI, HDMI
Capacitance @ Frequency 0.6pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 10-UFDFN
Supplier Device Package 10-QFN (2.5x1)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1362324-UBQ10A03L04
Ultra Librarian 3D Model Ultra Librarian UBQ10A03L04 CAD Model

Description

The UBQ10A03L04 is a TVS diode from YAGEO.

  • Series: UBQ10A03L04
  • Application: DVI and HDMI
  • Reverse Standoff Voltage: 3.3V (max)
  • Breakdown Voltage: 4.5V (min)
  • Clamping Voltage: 15V @ peak pulse current of 4A (8/20µs)
  • Package: 10-UFDFN
  • Supplier Device Package: 10-QFN (2.5x1)
  • REACH: Unaffected
  • ECCN: EAR99
  • Type: Steering
  • Channels: 4 (Unidirectional)
  • Product Status: Active
  • Packaging: Tape and Reel
