Same model may have multiple batches, images only for reference.

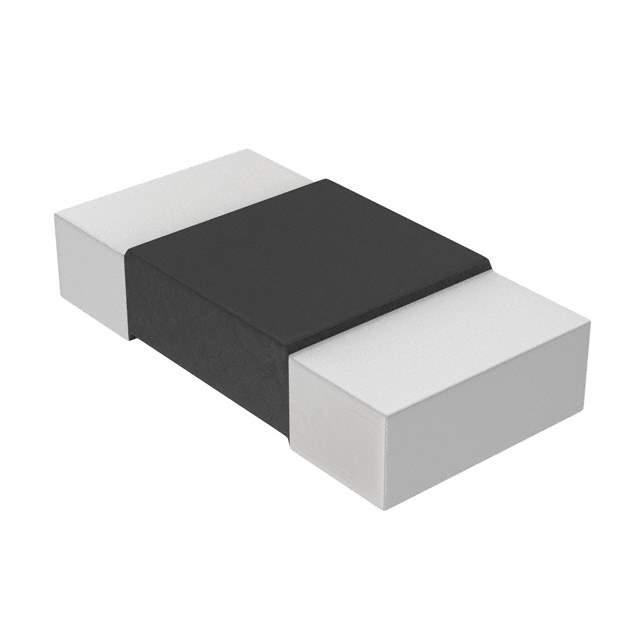

WSL0603R0250FEA Real Image
Same model may have multiple batches, images only for reference.

WSL0603R0250FEA

Part No WSL0603R0250FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 0.025 OHM 1% 1/10W 0603 / 25 mOhms ±1% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Metal Element
Datasheet
WSL0603R0250FEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Vishay Dale
Packaging Reel - TR
Resistance 25 mOhms
Tolerance ±1%
Power (Watts) 0.1W, 1/10W
Composition Metal Element
Features Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Case / Package 0603 (1608 Metric)
Supplier Device Package 0603
Ratings AEC-Q200
Size / Dimension 0.060" L x 0.030" W (1.52mm x 0.76mm)
Height - Seated (Max) 0.021" (0.53mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number WSLJ-.025DKR,Q5851482,WSLJ-.025TR,WSLJ-.025CT
Standard Package 5,000
Win Source Part Number 1329063-WSL0603R0250FEA
Ultra Librarian 3D Model Ultra Librarian WSL0603R0250FEA CAD Model

Description

The Vishay Dale WSL0603R0250FEA is a chip resistor that is ideal for use in automotive applications.

  • Resistance: 25 mOhms
  • Power Rating: 0.1W
  • Composition: Metal Element
  • Tolerance: ±1%
  • Pulse-Withstanding: Yes
  • Moisture-Resistant: Yes
  • Anti-Sulfur: Yes
  • AEC-Q200 Standard: Yes
  • Size: 0603
  • Seated Height (Max): 0.021 inches (0.53mm)
  • Reel: 5,000
  • Temperature Coefficient: ±75ppm/°C
