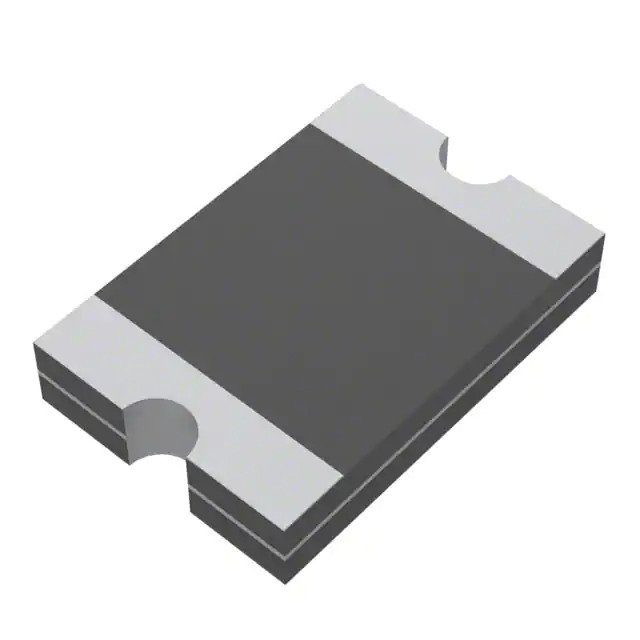

Same model may have multiple batches, images only for reference.
SMD1812B150TF/16 Yageo
Same model may have multiple batches, images only for reference.

SMD1812B150TF/16

Part No SMD1812B150TF/16
Manufacturer Yageo
Catalog PTC Resettable Fuses
Description POLYMERIC PTC RESETTABLE FUSE SU / Polymeric PTC Resettable Fuse 16V 1.5 A Ih Surface Mount 1812 (4532 Metric), Concave
Datasheet
SMD1812B150TF/16 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr YAGEO
Series SMD1812
Package Tape & Reel
Product Status Active
Type Polymeric
Voltage - Max 16V
Current - Hold (Ih) (Max) 1.5 A
Current - Trip (It) 2.8 A
Current - Max 100 A
Time to Trip 500 ms
Resistance - Initial (Ri) (Min) 40 mOhms
Resistance - Post Trip (R1) (Max) 120 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric), Concave
Size / Dimension 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) -
Thickness (Max) 0.071" (1.80mm)
Lead Spacing -
Approval Agency cUL, TUV, UL
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1361642-SMD1812B150TF/16
Ultra Librarian 3D Model Ultra Librarian SMD1812B150TF/16 CAD Model

Description

The SMD1812B150TF/16 is a polymeric PTC resettable fuse manufactured by YAGEO.

  • Series: SMD1812
  • Temperature Range: -40°C to 85°C
  • Package: Tape and Reel
  • Mounting Type: Surface Mount
  • Size: 0.179" L x 0.128" W (4.55mm x 3.24mm)
  • Thickness: 0.071" (1.80mm)
  • Voltage Rating: 16V
  • Current Rating: 100A
  • Current Hold (Ih): 1.5A
  • Current Trip (It): 2.8A
  • Resistance (Initial): 40 mOhms
  • Resistance (Post Trip): 120 mOhms
