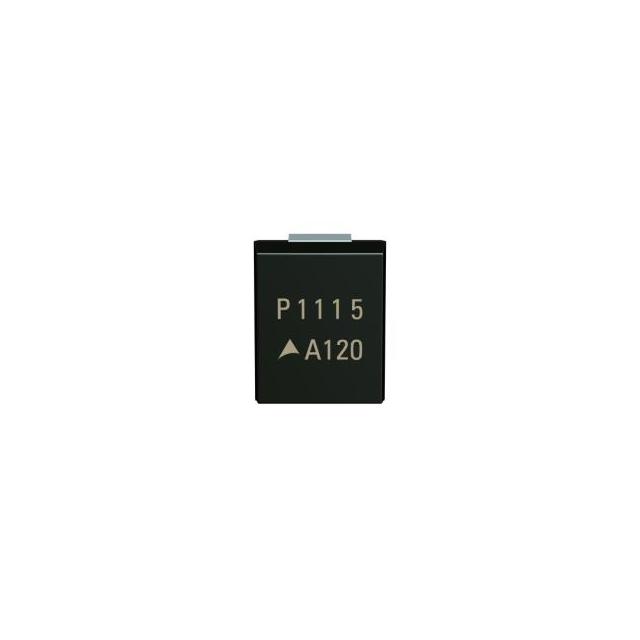

B59101P1120A062 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B59101P1120A062

Part No B59101P1120A062
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description Ceramic PTC Resettable Fuse 24V 355 mA Ih Surface Mount 2-SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series B59101
Packaging Reel - TR
Type Ceramic
Voltage - Max 24V
Current - Hold (Ih) (Max) 355 mA
Current - Max 170 mA
Resistance - Initial (Ri) (Min) 7.8 Ohms
Resistance - Post Trip (R1) (Max) 13 Ohms
Temperature Range - Operating -40°C ~ 60°C
Grade Automotive
Qualification AEC-Q200
Mounting Type Surface Mount
Package / Case 2-SMD
Size / Dimension 0.398" L x 0.138" W (10.10mm x 3.50mm)
Thickness (Max) 0.150" (3.80mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1482642-B59101P1120A062
Ultra Librarian 3D Model Ultra Librarian B59101P1120A062 CAD Model
