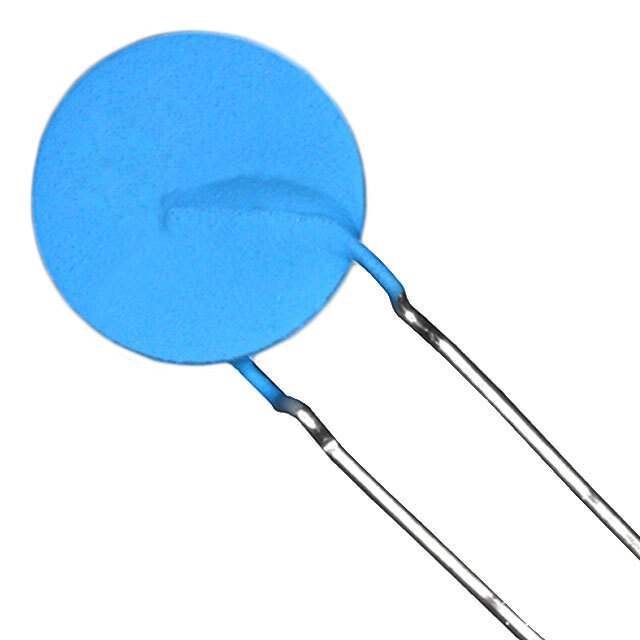

B59935C0120A070

Part No B59935C0120A070
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 30V 1.8A RADIAL
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Packaging  Bulk
Part Status Active
Type Ceramic
Voltage - Max 30V
Current - Hold (Ih) (Max) 1.8 A
Current - Trip (It) 3.6 A
Current - Max 10 A
Resistance - 25°C (Typ) 300 mOhms
Operating Temperature -40°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.866" Dia x 0.138" T (22.00mm x 3.50mm)
Ultra Librarian 3D Model Ultra Librarian B59935C0120A070 CAD Model

Description

Ceramic PTC Resettable Fuse 30V 1.8 A Ih Through Hole Radial, Disc
