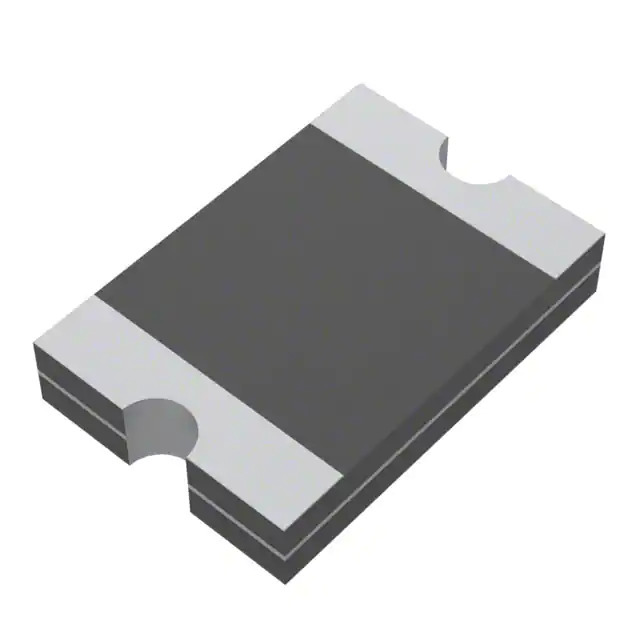

SMD1812B125TF/16 Yageo
Same model may have multiple batches, images only for reference.

SMD1812B125TF/16

Part No SMD1812B125TF/16
Manufacturer Yageo
Catalog PTC Resettable Fuses
Description POLYMERIC PTC RESETTABLE FUSE SU / Polymeric PTC Resettable Fuse 16V 1.25 A Ih Surface Mount 1812 (4532 Metric), Concave
Datasheet
SMD1812B125TF/16 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr YAGEO
Series SMD1812
Package Tape & Reel
Product Status Active
Type Polymeric
Voltage - Max 16V
Current - Hold (Ih) (Max) 1.25 A
Current - Trip (It) 2.5 A
Current - Max 100 A
Time to Trip 400 ms
Resistance - Initial (Ri) (Min) 50 mOhms
Resistance - Post Trip (R1) (Max) 140 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric), Concave
Size / Dimension 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) -
Thickness (Max) 0.059" (1.50mm)
Lead Spacing -
Approval Agency cUL, TUV, UL
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1361655-SMD1812B125TF/16
Ultra Librarian 3D Model Ultra Librarian SMD1812B125TF/16 CAD Model

Description

The SMD1812B125TF/16 is a polymeric PTC resettable fuse designed for circuit protection manufactured by YAGEO.

  • Operating Temperature: -40°C to 85°C
  • Voltage Rating: 16V
  • Maximum Current Rating: 100A
  • Packaging: Tape and Reel
  • Size (L x W): 0.179" L x 0.128" W (4.55mm x 3.24mm)
  • Mounting Type: Surface Mount
  • Tolerance: ±5%
