Same model may have multiple batches, images only for reference.

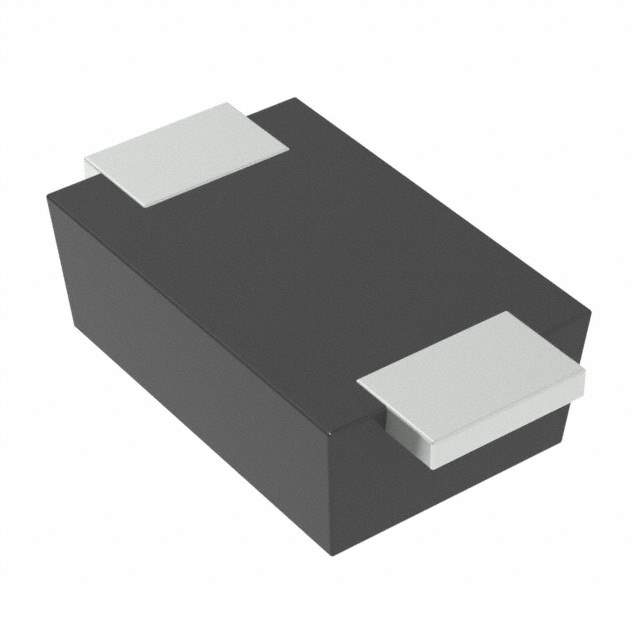

SJD12C70L01 Real Image
Same model may have multiple batches, images only for reference.

SJD12C70L01

Part No SJD12C70L01
Manufacturer Yageo
Catalog TVS - Diodes
Description TVS DIODE 70VWM 113VC SOD123S / 113V Clamp 1.8A Ipp Tvs Diode Surface Mount SOD-123S
Datasheet
SJD12C70L01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Manufacturer Yageo
Packaging Reel - TR
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 70V
Voltage - Breakdown (Min) 77.8V
Voltage - Clamping (Max) @ Ipp 113V
Current - Peak Pulse (10/1000µs) 1.8A
Power - Peak Pulse 200W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Surface Mount
Case / Package DO-219AA
Supplier Device Package SOD-123S
Base Product Number SJD12C
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 13-SJD12C70L01TR,13-SJD12C70L01CT,13-SJD12C70L01DKR
Standard Package 3,000
Win Source Part Number 1335005-SJD12C70L01
Ultra Librarian 3D Model Ultra Librarian SJD12C70L01 CAD Model

Description

Yageo presents a SOD-123S packaged, 1 bidirectional channel, 70V reverse standoff voltage, zener-type TVS diode with a standard package of 3,000.

  • Peak Pulse Power: 200W
  • Peak Pulse Current Rating: 1.8A @ 10/1000µs
  • Voltage Breakdown: 77.8V
  • Voltage Clamping @ Ipp: 113V
  • RoHS3 Compliant: Yes
  • ECCN: EAR99
  • Category: circuit protection>TVS - diodes
  • Ideal for: general purpose applications
