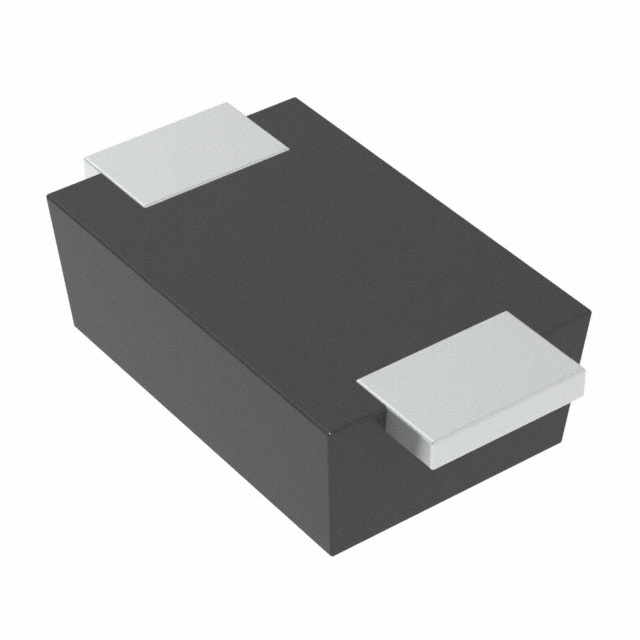

SJD12A43L01 Yageo
Same model may have multiple batches, images only for reference.

SJD12A43L01

Part No SJD12A43L01
Manufacturer Yageo
Catalog TVS - Diodes
Description TVS ARRAY ESD, SOD-123, 43V 69.4 / 69.4V Clamp 2.9A Ipp Tvs Diode Surface Mount SOD-123S
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr YAGEO
Series SJD12A43L01
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 43V
Voltage - Breakdown (Min) 47.8V
Voltage - Clamping (Max) @ Ipp 69.4V
Current - Peak Pulse (10/1000µs) 2.9A
Power - Peak Pulse 1000W (1kW)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency -
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-219AA
Supplier Device Package SOD-123S
Base Product Number SJD12A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1362305-SJD12A43L01
Ultra Librarian 3D Model Ultra Librarian SJD12A43L01 CAD Model

Description

The SJD12A43L01 is a TVS diode manufactured by YAGEO.

  • Series: SJD12A
  • Application: General Purpose
  • Temperature Range: -55°C to 150°C
  • Package: Tape & Reel (TR)
  • Reverse Standoff Voltage (Vrwm): 43V
  • Breakdown Voltage (Min): 47.8V
  • Clamping Voltage (Max) @ Ipp: 69.4V @ 2.9A
  • Peak Pulse Power (10/1000µs): 1000W (1kW)
