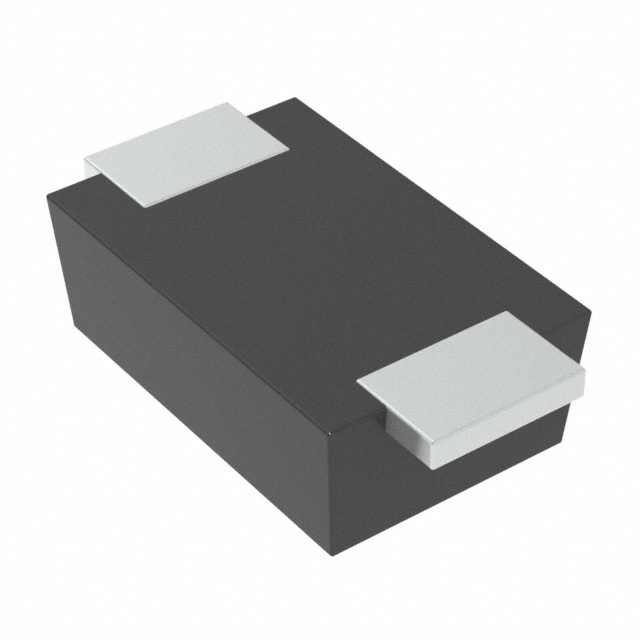

SJD12A14L01 Yageo
Same model may have multiple batches, images only for reference.

SJD12A14L01

Part No SJD12A14L01
Manufacturer Yageo
Catalog TVS - Diodes
Description TVS ARRAY ESD, SOD-123, 14V 23.2 / 23.2V Clamp 8.6A Ipp Tvs Diode Surface Mount SOD-123S
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr YAGEO
Series SJD12A14L01
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 14V
Voltage - Breakdown (Min) 15.6V
Voltage - Clamping (Max) @ Ipp 23.2V
Current - Peak Pulse (10/1000µs) 8.6A
Power - Peak Pulse 1000W (1kW)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency -
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-219AA
Supplier Device Package SOD-123S
Base Product Number SJD12A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1362323-SJD12A14L01
Ultra Librarian 3D Model Ultra Librarian SJD12A14L01 CAD Model

Description

The 1362323-SJD12A14L01 is a TVS diode designed for circuit protection applications and manufactured by YAGEO.

  • Breakdown Voltage: 15.6V
  • Clamping Voltage: 23.2V @ peak pulse current of 8.6A
  • Power Rating: 1000W
  • Series: SJD12A14L01
  • Package: DO-219AA
  • Supplier Device Package: SOD-123S
  • Application: General Purpose
  • Operating Temperature: -55°C to 150°C
  • REACH Compliance: Compliant
  • ECCN: EAR99
  • Packaging: Tape and Reel
