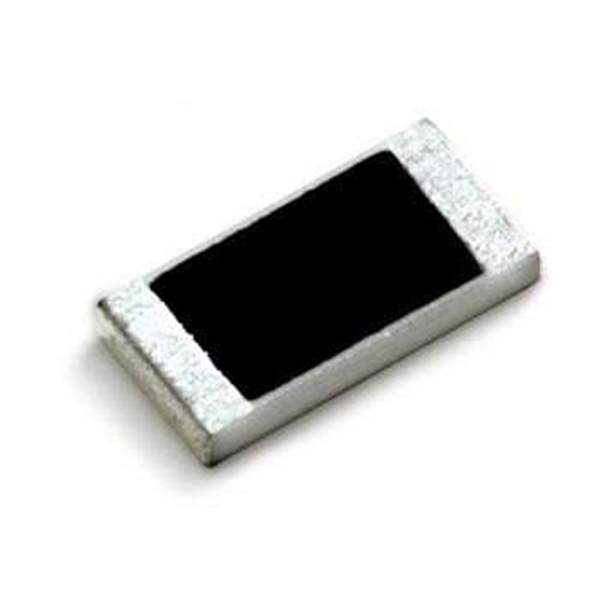

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Yageo
Series RT
Resistance 100 kOhms
Tolerance 1 %
Power Rating 250 mW (1/4 W)
Case Code - in 1206
Case Code - mm 3216
Temperature Coefficient 25 PPM / C
Minimum Operating Temperature - 55 C
Maximum Operating Temperature + 125 C
Voltage Rating 200 V
Packaging Cut Tape
Packaging MouseReel
Packaging Reel
Height 0.55 mm (0.022 in)
Length 3.2 mm (0.126 in)
Operating Temperature Range - 55 C to + 125 C
Product Thin Film Resistors SMD
Technology Thin Film
Termination Style SMD/SMT
Type High Precision, High Stability
Width 1.6 mm (0.063 in)
Brand YAGEO
Mounting Style PCB Mount
Product Type Thin Film Resistors
Standard Pack Qty 5000
Subcategory Resistors
Ultra Librarian 3D Model Ultra Librarian RT1206FRD07100KL CAD Model
