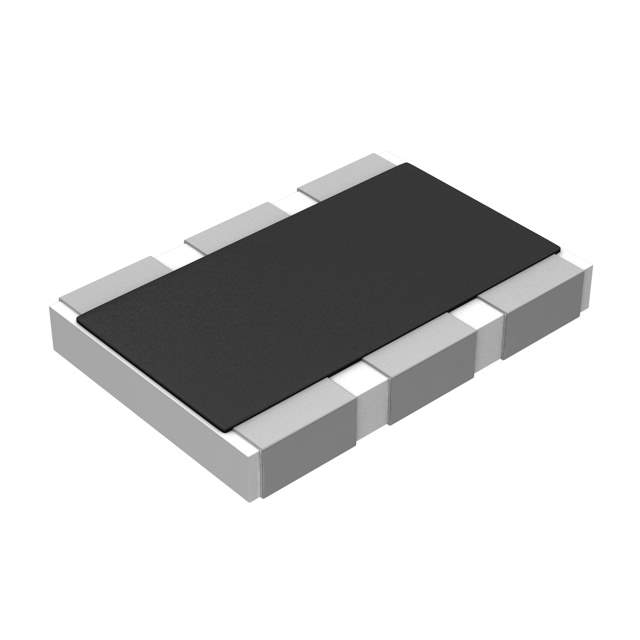

RL1218JK-070R024L Real Image
Same model may have multiple batches, images only for reference.

RL1218JK-070R024L

Part No RL1218JK-070R024L
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES 0.024 OHM 1W 1812 WIDE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Yageo
Packaging Reel
Resistance 24 mOhms
Tolerance ±5%
Power (Watts) 1W
Composition Thick Film
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±2000ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Manufacturer Package Wide 1812 (4532 Metric), 1218
Supplier Device Package 1218
Dimension 0.120" L x 0.181" W (3.05mm x 4.60mm)
Height - Seated (Maximum) 0.026" (0.65mm)
Number of Terminations 2
Manufacturer Pack Quantity 4,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804681-RL1218JK-070R024L
Ultra Librarian 3D Model Ultra Librarian RL1218JK-070R024L CAD Model

Description

The RL1218JK-070R024L from Yageo is a thick film current sense resistor that has a power rating of 1W and a resistance of 24 mOhms.

  • Tolerance: ±5%
  • Temperature Coefficient: ±2000ppm/°C
  • Applications: Automotive AEC-Q200
  • Features: Moisture resistant
  • Packaging: Reel
  • Supplier Device Package: 1218
  • Temperature Range: -55°C to 155°C
  • Dimension: 0.120" L x 0.181" W (3.05mm x 4.60mm)
  • Height Seated (Maximum): 0.026" (0.65mm)
