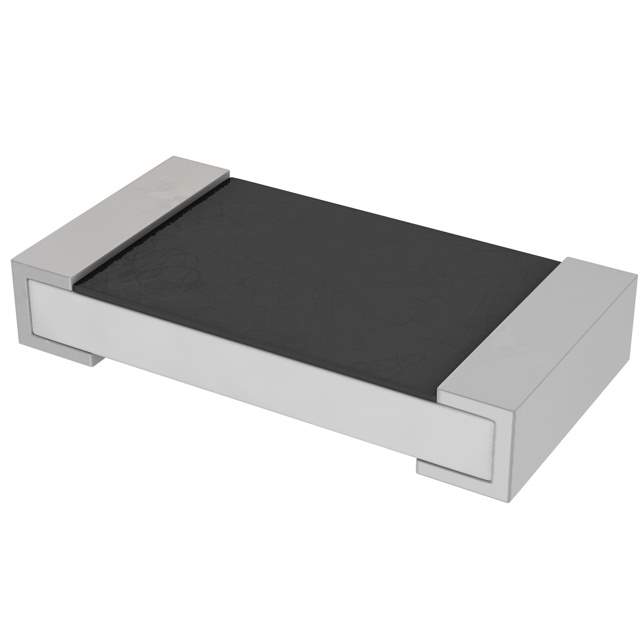

PT1206FR-070R22L Real Image1 PT1206FR-070R22L Real Image2
Same model may have multiple batches, images only for reference.
PT1206FR-070R22L Real Image1 PT1206FR-070R22L Real Image2
PT1206FR-070R22L Real Image1 PT1206FR-070R22L Real Image2
Same model may have multiple batches, images only for reference.

PT1206FR-070R22L

Part No PT1206FR-070R22L
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES 0.22 OHM 1% 1/4W 1206 / 220 mOhms ±1% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Yageo
Series PT
Package Tape & Reel
Resistance 220 mOhms
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Thick Film
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Ratings AEC-Q200
Size / Dimension 0.122" L x 0.063" W (3.10mm x 1.60mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Failure Rate -
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Standard Package 5,000 pcs
Win Source Part Number 1383219-PT1206FR-070R22L
Ultra Librarian 3D Model Ultra Librarian PT1206FR-070R22L CAD Model

Description

The 1383219-PT1206FR-070R22L is a chip resistor designed for surface mount applications. It belongs to the resistors category and is part of the PT series.

  • Category: Resistors
  • Series: PT
  • Application: Automotive
  • Standard: AEC-Q200 compliant
  • Features: Current Sensing, Moisture Resistant
  • Package: Tape & Reel
  • Size: 0.122" L x 0.063" W (3.10mm x 1.60mm)
  • Seated Height: 0.026" (0.65mm)
  • Standard Package: 5,000 pcs
  • Tolerance: ±1%
  • Temperature Coefficient: ±75ppm/°C
  • Power Rating: 0.25W (1/4W)
  • Composition: Thick Film
  • Terminations: 2
  • Resistance: 220 mOhms
  • Package / Case: 1206 (3216 Metric)
  • Supplier: Yageo
  • Operating Temperature: -55°C to 155°C
  • REACH Compliance: Not Affected
  • MSL Level: 1 (unlimited)
