Same model may have multiple batches, images only for reference.

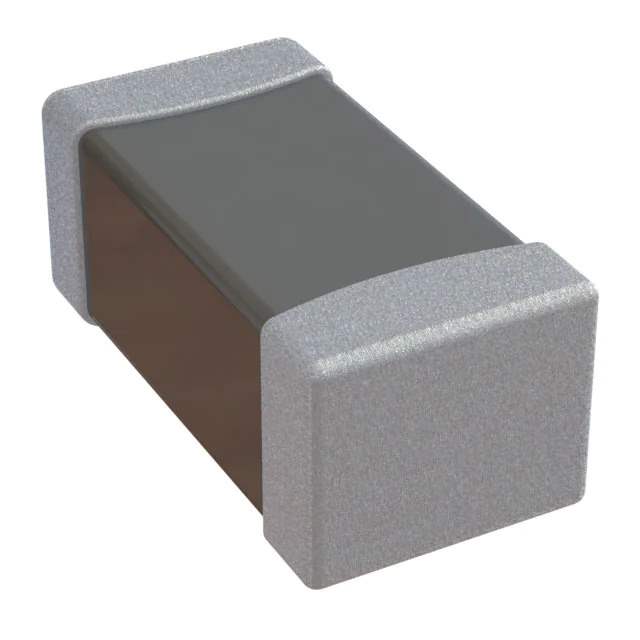

CQ0603BRNPO9BN3R7 Real Image
Same model may have multiple batches, images only for reference.

CQ0603BRNPO9BN3R7

Part No CQ0603BRNPO9BN3R7
Manufacturer Yageo
Catalog Ceramic Capacitors
Description CAP CER 3.7PF 50V C0G/NPO 0603 / 3.7 pF ±0.1pF 50V Ceramic Capacitor C0G, NP0 0603 (1608 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr YAGEO
Series CQ
Package Tape & Reel
Product Status Active
Capacitance 3.7 pF
Tolerance ±0.1pF
Voltage - Rated 50V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 0603 (1608 Metric)
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Thickness (Max) 0.035" (0.90mm)
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 867150-CQ0603BRNPO9BN3R7
Ultra Librarian 3D Model Ultra Librarian CQ0603BRNPO9BN3R7 CAD Model

Description

The 867150-CQ0603BRNPO9BN3R7 is a ceramic capacitor from YAGEO's CQ series.

  • Application: General-purpose
  • Mounting: Surface Mount
  • Capacitance: 3.7 pF
  • Capacitance Tolerance: ±0.1pF
  • Voltage Rating: 50V
  • Temperature Coefficient: C0G, NP0
  • Package Size: 0603 (1608 Metric)
  • Dimensions: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Operating Temperature Range: -55°C to 125°C
  • Packaging: Tape & Reel
  • Quantity per Package: 4,000 pieces
  • Product Status: Active
