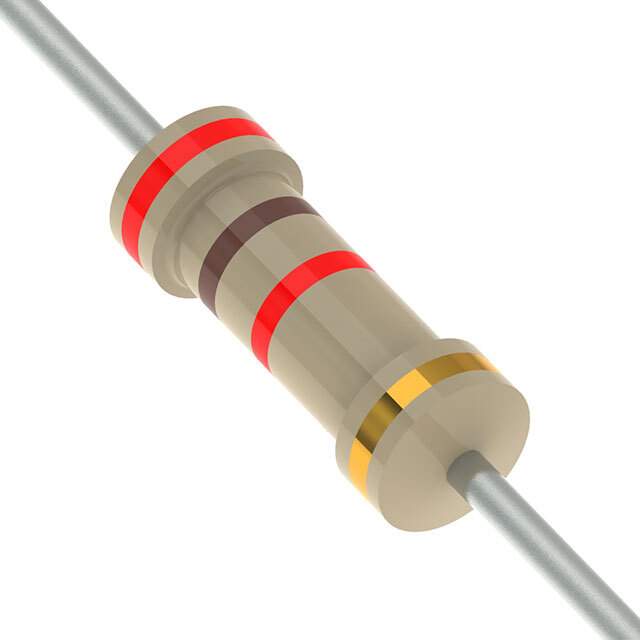

Same model may have multiple batches, images only for reference.

CFR-25JB-52-120R

Name: CFR-25JB-52-120R
Brand: Yageo
SKU: 1325898
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CFR-25JB-52-120R
Manufacturer	Yageo
Catalog	Through Hole Resistors
Description	RES 120 OHM 5% 1/4W AXIAL / 120 Ohms ±5% 0.25W, 1/4W Through Hole Resistor Axial Carbon Film
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Through Hole Resistors
Manufacturer	Yageo
Packaging	Bulk
Resistance	120 Ohms
Tolerance	±5%
Power (Watts)	0.25W, 1/4W
Composition	Carbon Film
Temperature Coefficient	-500/ +350ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Case / Package	Axial
Supplier Device Package	Axial
Size / Dimension	0.094" Dia x 0.248" L (2.40mm x 6.30mm)
Number of Terminations	2
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.10.0065
Other Part Number	120Q,CFR-25JB-120R,CFR25JB52120R,CR-25-B-120,CFR-25JB 120R,CFR-25JB-52120R,120E CR-1/4W-B 5%,120QBK
Standard Package	10,000
Win Source Part Number	1325898-CFR-25JB-52-120R
Ultra Librarian 3D Model	Ultra Librarian CFR-25JB-52-120R CAD Model

Alternative Products

Description

The CFR-25JB-52-120R by Yageo is a through-hole resistor with a resistance of 120 Ohms and a tolerance of ±5%.

Resistance: 120 Ohms
Tolerance: ±5%
Power Rating: 0.25W (1/4W)
Temperature Coefficient: -500/+350ppm/°C
Package: Axial
Terminations: Two
Operating Temperature Range: -55°C to 155°C
Application: Through-hole resistor applications in electronic devices
