Same model may have multiple batches, images only for reference.

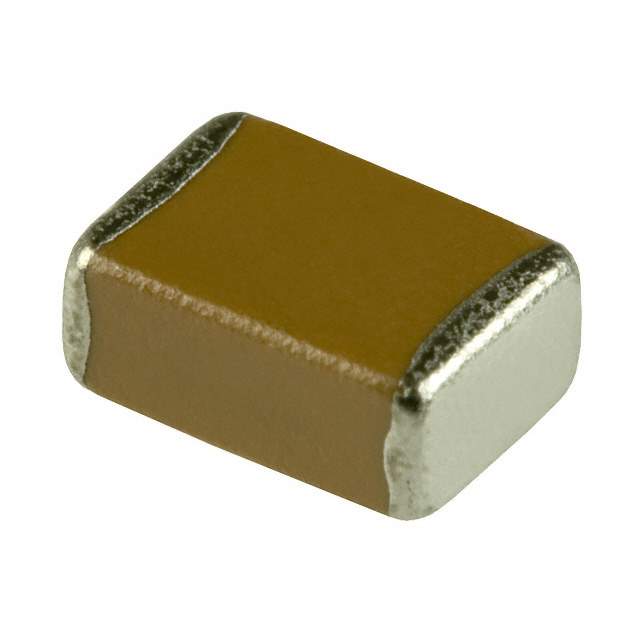

CC1812KKX7RDBB152 Real Image
Same model may have multiple batches, images only for reference.

CC1812KKX7RDBB152

Part No CC1812KKX7RDBB152
Manufacturer Yageo
Catalog Ceramic Capacitors
Description CAP CER 1500PF 2KV X7R 1812 / 1500 pF ±10% 2000V (2kV) Ceramic Capacitor X7R 1812 (4532 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr YAGEO
Series CC
Package Tape & Reel
Capacitance 1500 pF
Tolerance ±10%
Voltage - Rated 2000V (2kV)
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 1812 (4532 Metric)
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Thickness (Max) 0.059" (1.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Names 311-4564-1,311-4564-2,225002415625,CC1812KKX7RDBB152-ND,18122R152KFBB0D,311-4564-6
Standard Package 1,000
Win Source Part Number 1167995-CC1812KKX7RDBB152
Ultra Librarian 3D Model Ultra Librarian CC1812KKX7RDBB152 CAD Model

Description

The CC1812KKX7RDBB152 is a ceramic capacitor manufactured by YAGEO.

  • Type: High Voltage Capacitor
  • Capacitance: 1500 pF
  • Tolerance: ±10%
  • Voltage Rating: 2000V (2kV)
  • Product Status: Active
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Application: General-purpose
