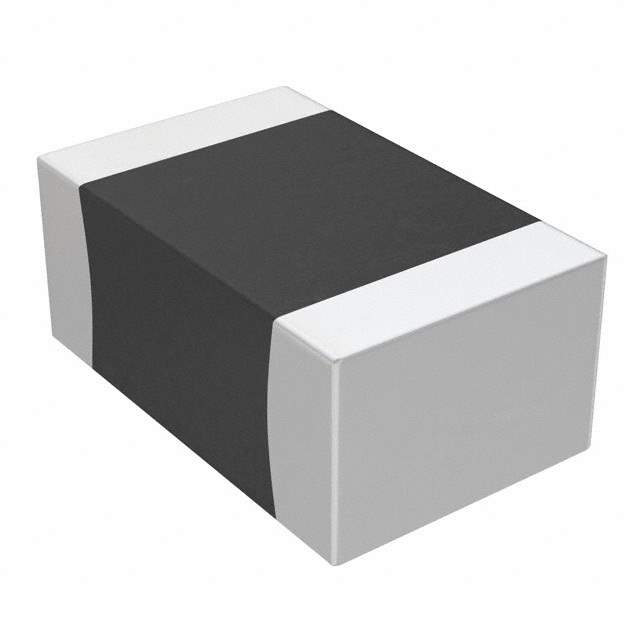

The CC0805GRNPO9BN471 is a multilayer ceramic capacitor (MLCC) manufactured by Yageo. This capacitor features a 0805 case size and utilizes a C0G/NP0 dielectric material, known for its exceptional stability and low loss characteristics. It is well-suited for applications requiring high precision and reliability.

Applications

• RF Circuits: Used in radio frequency circuits for tuning, filtering, and impedance matching.
• High-Frequency Circuits: Employed in circuits operating at high frequencies where stability is critical.
• Timing Circuits: Utilized in precision timing circuits requiring minimal drift.
• Sensor Circuits: Incorporated in sensor circuits where accuracy and stability are essential.
• Filter Circuits: Used in applications that require stable filtering capabilities.

Features

• C0G/NP0 Dielectric: Offers ultra-stable capacitance over temperature and voltage.
• Low Loss: Minimizes energy dissipation in high-frequency applications.
• High Q Factor: Provides excellent performance in resonant circuits.
• 0805 Case Size: Standard size for surface mount applications.
• RoHS Compliant: Complies with Restriction of Hazardous Substances directive.
• Surface Mount Technology (SMT): Designed for automated assembly.

Benefits

• Excellent Stability: C0G/NP0 dielectric ensures minimal capacitance change with temperature and voltage.
• High Efficiency: Low loss characteristics improve circuit efficiency.
• Precise Performance: High Q factor enhances performance in resonant applications.
• Easy Assembly: SMT design allows for efficient automated assembly.
• Environmentally Friendly: RoHS compliance reduces environmental impact.

Additional Details

The CC0805GRNPO9BN471 has a capacitance value of 470pF (picofarads) with a tolerance of ±0.1pF or 2% depending on the datasheet. The rated voltage is typically 50V or 100V, depending on the manufacturer's specifications. The operating temperature range is generally -55°C to +125°C. Due to its C0G/NP0 dielectric, the capacitance remains highly stable across this temperature range. This capacitor is often used in sensitive electronic equipment such as test and measurement instruments, medical devices, and communication systems where precise and stable performance is crucial.
