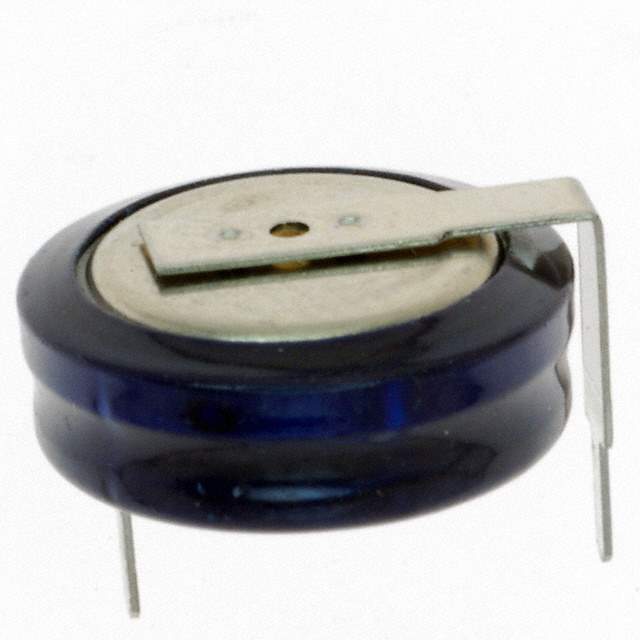

KR-5R5H334-R Real Image
Same model may have multiple batches, images only for reference.

KR-5R5H334-R

Part No KR-5R5H334-R
Manufacturer Eaton Bussmann
Catalog Electric Double Layer Capacitors, Supercaps
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr Eaton - Electronics Division
Series KR
Package Bulk
Capacitance 330 mF
Tolerance -20%, +80%
Voltage - Rated 5.5 V
ESR (Equivalent Series Resistance) 50Ohm @ 1kHz
Lifetime @ Temp. 1000 Hrs @ 70°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Axial, Can - Horizontal
Lead Spacing 0.394" (10.00mm)
Dimension 0.453" Dia (11.50mm)
Height - Seated (Max) 0.197" (5.00mm)
Temperature Range - Operating -25°C ~ 70°C
Other Names 283-2820,KR5R5H334R
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.29.0040
Win Source Part Number 1302784-KR-5R5H334-R
Ultra Librarian 3D Model Ultra Librarian KR-5R5H334-R CAD Model

Description

The KR-5R5H334-R is an electric double layer capacitor from Eaton, designed for use in electronic circuits.

  • Capacitance: 330 mF
  • Voltage Rating: 5.5 V
  • Tolerance: -20%, +80%
  • ESR: 50Ohm @ 1kHz
  • Lifetime: 1000 Hrs @ 70°C
  • Mounting: Through-Hole
  • Lead Spacing: 0.394" (10.00mm)
  • Dimension: 0.453" Dia (11.50mm)
  • Temperature Range: -25°C ~ 70°C
