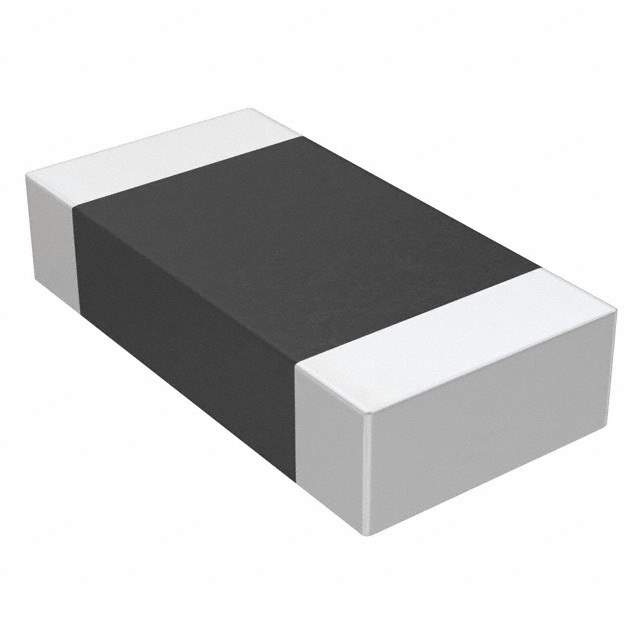

The C1206JRX7R9BB333 is a multilayer ceramic capacitor (MLCC) manufactured by Yageo. It is a surface-mount component designed for general-purpose applications in electronic circuits. Its compact size and stable performance make it a popular choice for decoupling, filtering, and energy storage.

Applications

• Decoupling capacitors in digital circuits
• Filtering capacitors in power supplies
• Energy storage in portable devices
• Bypass capacitors in analog circuits
• Timing circuits

Features

• X7R dielectric material
• 1206 case size
• 0.033μF capacitance
• 50V voltage rating
• Surface mount technology (SMT)

Benefits

• Provides stable capacitance over temperature and voltage
• Reduces noise and improves signal integrity
• Offers a compact size for high-density circuit boards
• Suitable for automated assembly processes
• Provides reliable performance in various electronic applications

Additional Details

The C1206JRX7R9BB333 capacitor utilizes X7R dielectric material, which provides stable capacitance over a wide temperature range (-55°C to +125°C) and voltage conditions. The 1206 case size indicates its dimensions (0.12 inch x 0.06 inch). The 0.033μF capacitance value determines its ability to store electrical energy. The 50V voltage rating specifies the maximum voltage that can be safely applied to the capacitor. Its surface mount design enables automated assembly and reduces manufacturing costs. It conforms to RoHS standards, ensuring environmental compliance.
