Same model may have multiple batches, images only for reference.

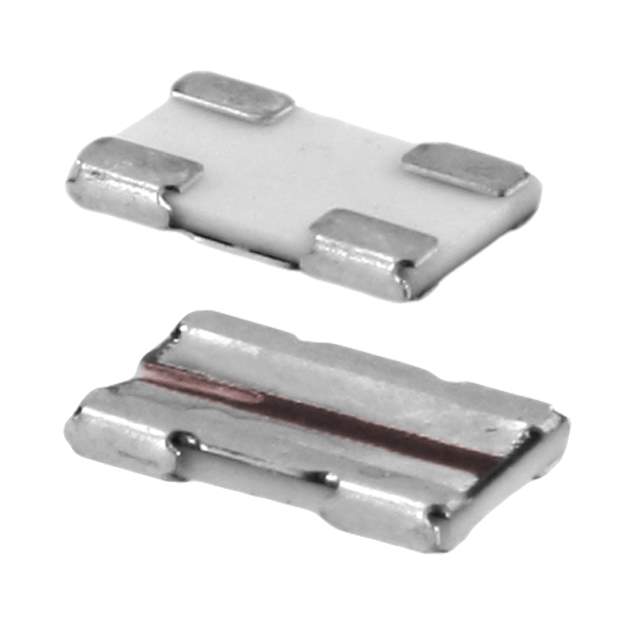

Y08500R06200F0W Real Image
Same model may have multiple batches, images only for reference.

Y08500R06200F0W

Part No Y08500R06200F0W
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 0.062 OHM 1/2W 2516 WIDE / 62 mOhms ±1% 0.5W, 1/2W Chip Resistor Wide 2516 (6440 Metric), 1625 Current Sense, Moisture Resistant, Non-Inductive Metal Foil
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Foil Resistors (Division of Vishay Precision Group)
Series VCS1625
Package Tray
Resistance 62 mOhms
Tolerance ±1%
Power (Watts) 0.5W, 1/2W
Composition Metal Foil
Features Current Sense, Moisture Resistant, Non-Inductive
Temperature Coefficient ±2ppm/°C
Temperature Range - Operating -55°C ~ 150°C
Package / Case Wide 2516 (6440 Metric) , 1625
Supplier Device Package SMD
Size / Dimension 0.160" L x 0.250" W (4.06mm x 6.35mm)
Height - Seated (Max) 0.040" (1.02mm)
Number of Terminations 4
Standard Package 50
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1336710-Y08500R06200F0W
Ultra Librarian 3D Model Ultra Librarian Y08500R06200F0W CAD Model

Description

The VCS1625 resistor is a chip resistor that is surface-mounted.

  • Size / Dimension: 0.160" L x 0.250" W (4.06mm x 6.35mm)
  • Height - Seated (Max): 0.040" (1.02mm)
  • Tolerance: ±1%
  • Temperature Coefficient: ±2ppm/°C
  • Power (Watts): 0.5W
  • Resistance: 62 mOhms
  • Composition: Metal Foil
  • Number of Terminations: 4
  • Operating Temperature: -55°C ~ 150°C
  • Manufacturer: Vishay Foil Resistors (Division of Vishay Precision Group)
