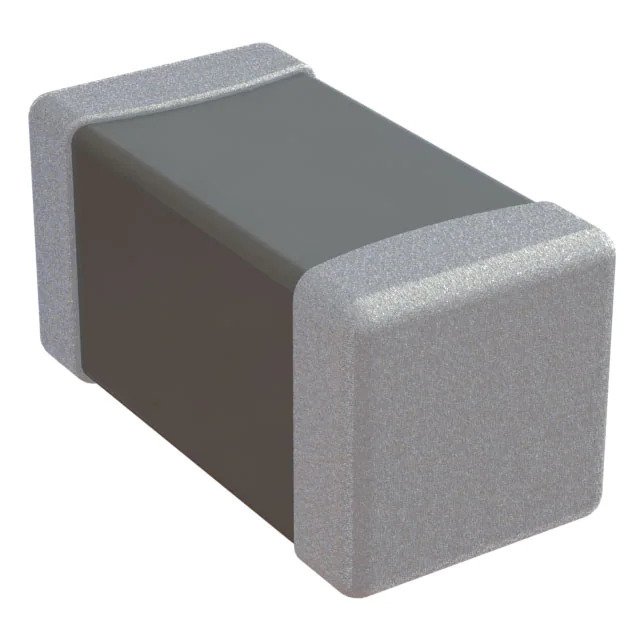

Same model may have multiple batches, images only for reference.

AC0402CRNPO9BN5R6

Name: AC0402CRNPO9BN5R6
Brand: Yageo
SKU: 1359451
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	AC0402CRNPO9BN5R6
Manufacturer	Yageo
Catalog	Ceramic Capacitors
Description	CAP CER 5.6PF 50V C0G/NPO 0402 / 5.6 pF ±0.25pF 50V Ceramic Capacitor C0G, NP0 0402 (1005 Metric)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Ceramic Capacitors
Mfr	YAGEO
Series	AC
Package	Tape & Reel
Product Status	Active
Capacitance	5.6 pF
Tolerance	±0.25pF
Voltage - Rated	50V
Temperature Coefficient	C0G, NP0
Temperature Range - Operating	-55°C ~ 125°C
Features	-
Ratings	AEC-Q200
Applications	Automotive
Failure Rate	-
Mounting Type	Surface Mount, MLCC
Package / Case	0402 (1005 Metric)
Size / Dimension	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)	-
Thickness (Max)	0.022" (0.55mm)
Lead Spacing	-
Lead Style	-
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.24.0020
Win Source Part Number	1359451-AC0402CRNPO9BN5R6
Ultra Librarian 3D Model	Ultra Librarian AC0402CRNPO9BN5R6 CAD Model

Alternative Products

Description

The AC0402CRNPO9BN5R6 is a ceramic capacitor designed for automotive applications by YAGEO.

Capacitance: 5.6 pF
Tolerance: ±0.25pF
Rated Voltage: 50V
Series: AC
Status: Active
Packaging: Tape and Reel
Package Size: 0402 (1005 Metric)
Mounting: Surface Mountable
Size: 0.039" L x 0.020" W (1.00mm x 0.50mm)
Thickness: 0.022" (0.55mm)
REACH: Unaffected
ECCN: EAR99
Temperature Coefficient: C0G, NP0
