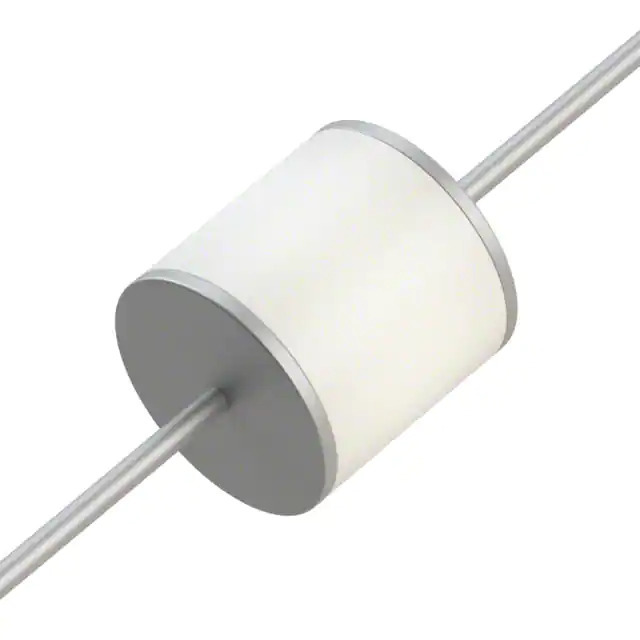

Same model may have multiple batches, images only for reference.
2RL1000L-8/B Yageo
Same model may have multiple batches, images only for reference.

2RL1000L-8/B

Part No 2RL1000L-8/B
Manufacturer Yageo
Catalog Gas Discharge Tube Arresters (GDT)
Description GDT 1000V 5KA 2 POLE TH / Gas Discharge Tube 1000 V 5000A (5kA) ±20% 2 Pole Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Gas Discharge Tube Arresters (GDT)
Mfr YAGEO
Series 2R-8x8
Package Tray
Product Status Active
Voltage - DC Spark Over (Nom) 1000 V
Impulse Discharge Current (8/20µs) 5000A (5kA)
Tolerance ±20%
Number of Poles 2
Fail Short No
Mounting Type Through Hole
Package / Case Axial Cylinder
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.30.8000
Win Source Part Number 1361206-2RL1000L-8/B
Ultra Librarian 3D Model Ultra Librarian 2RL1000L-8/B CAD Model

Description

The YAGEO 2R-8x8 Gas Discharge Tube Arrester (GDT) is a high-performance circuit protection component designed to protect electronic circuits from voltage surges and transients.

  • DC Spark Over Voltage: 1000V
  • Impulse Discharge Current: 5000A (5kA)
  • Design: Two-Pole
  • Mounting Type: Through Hole
  • Package: Axial Cylinder
  • Tolerance: ±20%
  • Series: 2R-8x8
  • Manufacturer: YAGEO
