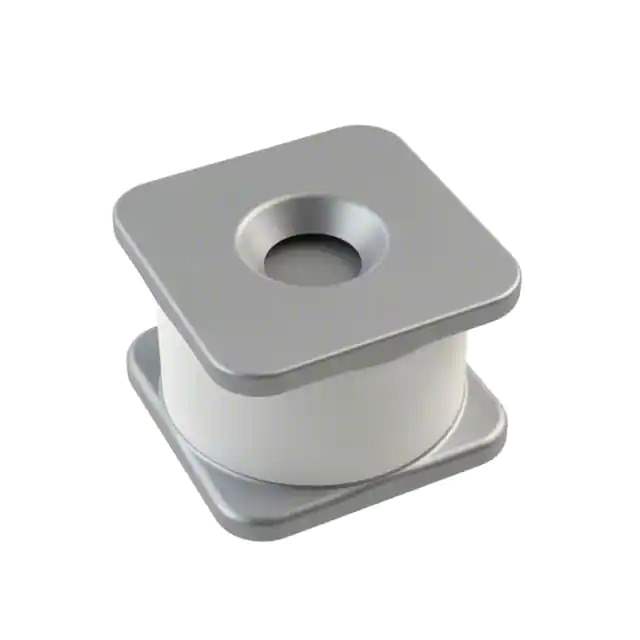

2RL090M-6 Real Image
Same model may have multiple batches, images only for reference.

2RL090M-6

Part No 2RL090M-6
Manufacturer Yageo
Catalog Gas Discharge Tube Arresters (GDT)
Description GDT 90V 5KA 2 POLE SMD REEL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Gas Discharge Tube Arresters (GDT)
Mfr YAGEO
Series 2R-6
Package Tape & Reel
Product Status Active
Voltage - DC Spark Over (Nom) 90 V
Impulse Discharge Current (8/20µs) 5000A (5kA)
Tolerance ±20%
Number of Poles 2
Fail Short No
Mounting Type Surface Mount
Package / Case 2-SMD Cylinder Square End
Standard Package 800 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.30.8000
Win Source Part Number 855014-2RL090M-6
Ultra Librarian 3D Model Ultra Librarian 2RL090M-6 CAD Model

Description

The 855014-2RL090M-6 is a gas discharge tube arrester (GDT) designed for circuit protection.

  • Type: Gas Discharge Tube Arrester (GDT)
  • Series: 2R-6
  • Mounting Type: Surface Mount
  • Voltage: 90V
  • Poles: 2
  • Impulse Discharge Current: 5000A (5kA)
  • Packaging: Tape and Reel (800 pcs)
  • Tolerance: ±20%
  • Fail Short: No
  • Manufacturer: YAGEO
  • Status: Active
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8536.30.8000
