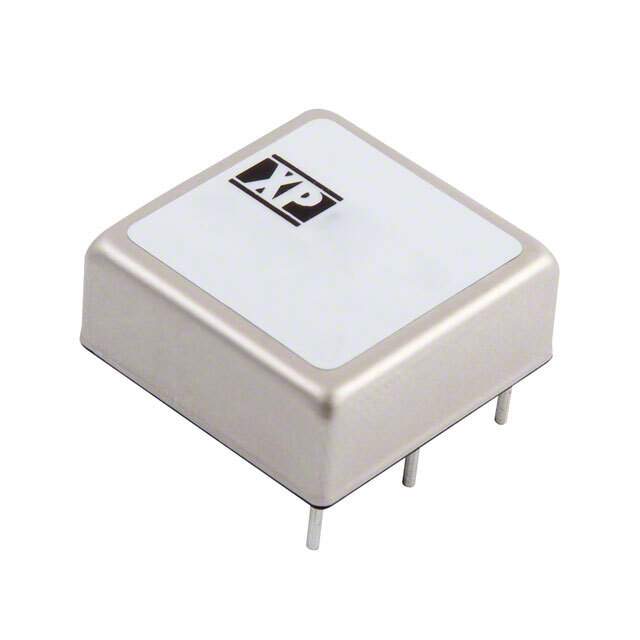

Same model may have multiple batches, images only for reference.

JTK2024S12

Name: JTK2024S12
Brand: XP Power
SKU: 1351074
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	JTK2024S12
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 20W / Isolated Module DC DC Converter 1 Output 12V 1.67A 9V - 36V Input
Datasheet	JTK2024S12 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	JTK (20W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Current - Output (Max)	1.67A
Power (Watts)	20 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	89%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Control Features	Enable, Active High
Standard Number	62368-1
Base Product Number	JTK2024
Standard Package	10
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1351074-JTK2024S12
Ultra Librarian 3D Model	Ultra Librarian JTK2024S12 CAD Model

Alternative Products

Description

The XP Power JTK (20W) isolated module DC-DC converter is perfect for ITE (Commercial) applications.

Series: JTK (20W)
Application: ITE (Commercial)
Power: 20W
Voltage Isolation: 1.6kV
Mounting: Through-Hole
Package: 6-DIP Module
Input Voltage Range: 9V to 36V
Output Voltage: 12V
Current Output (Max): 1.67A
Efficiency: 89%
