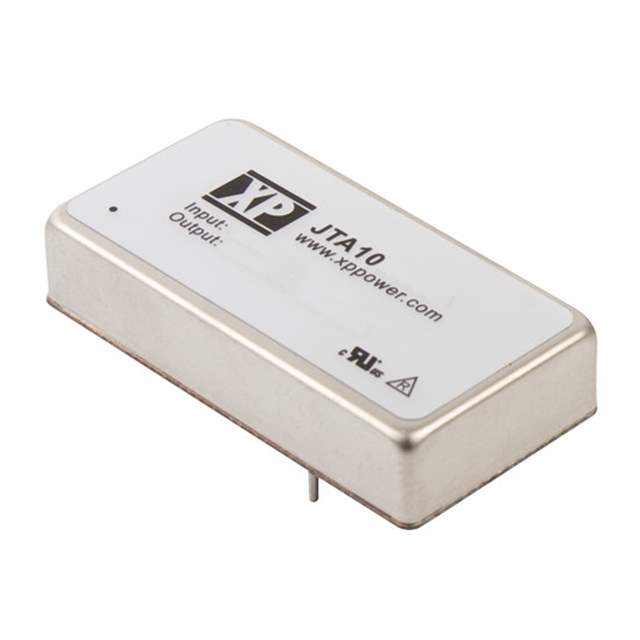

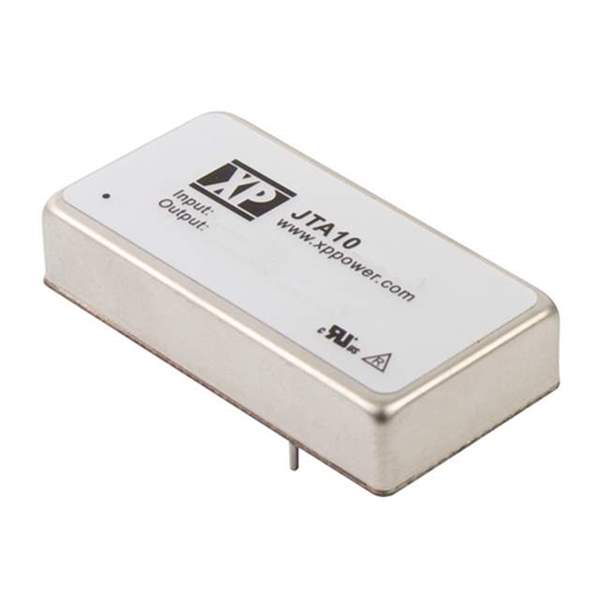

Same model may have multiple batches, images only for reference.

JTA1024S05

Name: JTA1024S05
Brand: XP Power
SKU: 1335165
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	JTA1024S05
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 10W / Isolated Module DC DC Converter 1 Output 5V 2A 9V - 36V Input
Datasheet	JTA1024S05 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	XP Power
Packaging	Bulk
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Current - Output (Max)	2A
Power (Watts)	10 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating	-40°C ~ 100°C (With Derating)
Efficiency	79%
Mounting	Through Hole
Case / Package	5-DIP Module
Size / Dimension	2.00" L x 1.00" W x 0.44" H (50.8mm x 25.4mm x 11.1mm)
Base Product Number	JTA1024
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Standard Package	12
Win Source Part Number	1335165-JTA1024S05
Ultra Librarian 3D Model	Ultra Librarian JTA1024S05 CAD Model

Alternative Products

Description

The XP Power JTA1024S05 is an isolated module DC-DC converter that is widely used in ITE (Commercial) applications.

Power Output: 10W
Voltage Isolation: 1.5kV
Input Voltage: 9V to 36V
Output Voltage: 5V
Current Output (max): 2A
Efficiency: 79%
Dimensions: 2.00" L x 1.00" W x 0.44" H (50.8mm x 25.4mm x 11.1mm)
Mounting Style: Through Hole
RoHS3 Compliant: Yes
Manufacturer: XP Power
