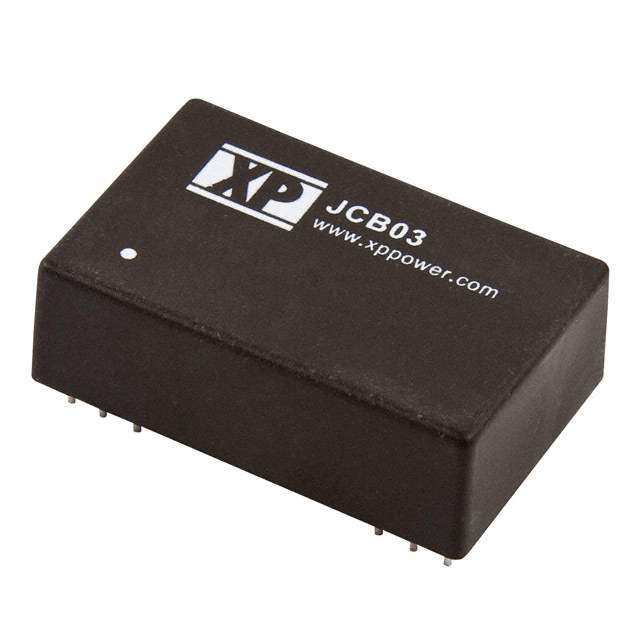

JCB0305D12 Real Image
Same model may have multiple batches, images only for reference.

JCB0305D12

Part No JCB0305D12
Manufacturer XP Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 4.5V - 9V Input
Datasheet
JCB0305D12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr XP Power
Series JCB (3W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 125mA, 125mA
Power (Watts) 3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features OCP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 100°C (With Derating)
Efficiency 72%
Mounting Type Through Hole
Package / Case 24-DIP Module, 14 Leads
Size / Dimension 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number JCB0305
Standard Package 10
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1348116-JCB0305D12
Ultra Librarian 3D Model Ultra Librarian JCB0305D12 CAD Model

Description

The JCB (3W) Isolated Module is a power supply board mount DC-DC converter suitable for commercial ITE applications.

  • Protection Features: Overcurrent Protection (OCP), Overvoltage Protection (OVP), Short Circuit Protection (SCP), and Undervoltage Lockout (UVLO)
  • Packaging: Tube
  • Size/Dimension: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
  • Outputs: Two Outputs
  • Maximum Current Output: 125mA and 125mA
  • Input Voltage Range: 4.5V to 9V
  • Output Voltage Range: 12V and -12V
  • Efficiency: 72%
  • Mounting Type: Through Hole
  • Package: 24-DIP Module, 14 Leads
  • Temperature Range: -40℃ to 100℃ (with derating)
  • ECCN: EAR99
  • Manufacturer: XP Power
