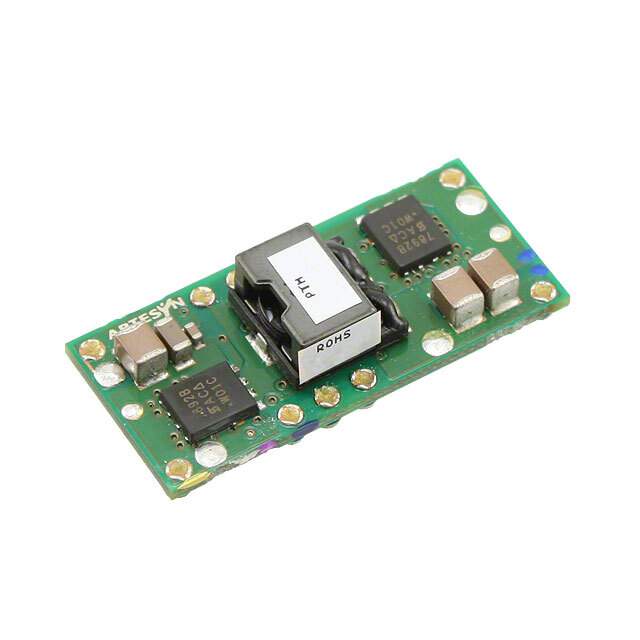

The PTH05010WAZ is a highly efficient, non-isolated power module from Texas Instruments, renowned for its robust design and exceptional performance in a wide range of applications. This power module is part of the PTH series, which is well-suited for distributed power systems where a wide input voltage range and adjustable output voltage are required.

Key Features

• Wide Input Voltage Range: The module operates with an input voltage range of 4.5V to 5.5V, making it versatile for various applications.
• Adjustable Output Voltage: The output voltage can be adjusted from 0.8V to 3.6V, providing flexibility to power a diverse array of devices.
• High Efficiency: With an efficiency of up to 90%, the PTH05010WAZ ensures minimal power loss, making it ideal for energy-sensitive applications.
• Power Density: The module boasts a high power density due to its compact size, which is beneficial for space-constrained applications.
• Output Current: It can deliver up to 6A of output current, suitable for powering high-performance integrated circuits.
• Thermal Performance: Enhanced thermal performance is achieved through the use of advanced packaging technology.
• Easy Implementation: The PTH05010WAZ is designed for easy implementation into existing systems, with minimal external components required.

Applications

The PTH05010WAZ is used across various industries and applications, including but not limited to:

• Telecommunications equipment
• Networking hardware
• Computing systems
• Industrial controls
• Test equipment

Reliability and Support

Texas Instruments is known for its commitment to quality and reliability. The PTH05010WAZ is no exception, offering exceptional performance and durability. Additionally, customers can access comprehensive technical support and documentation, ensuring seamless integration and maintenance of the power module in their applications.
