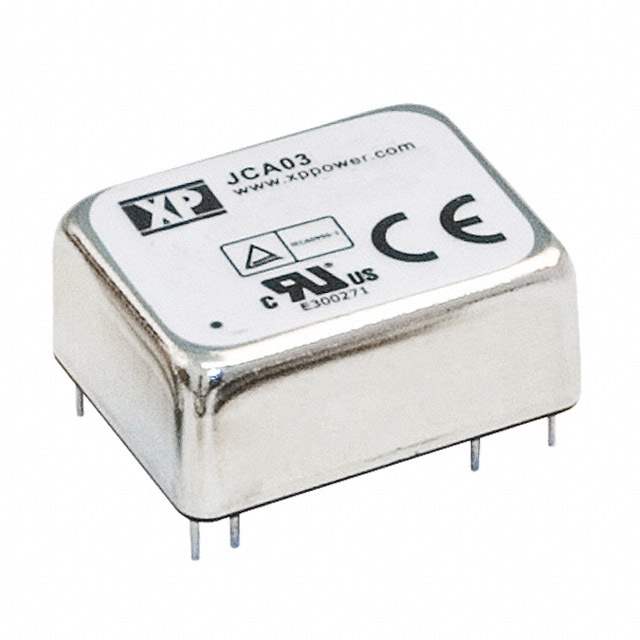

Same model may have multiple batches, images only for reference.

JCA0348S15

Name: JCA0348S15
Brand: XP Power
SKU: 165901
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	JCA0348S15
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC/DC CONVERTER 15V 3W
Datasheet	JCA0348S15 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	XP Power
Series	JCA
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	15V
Current - Output (Max)	200mA
Power (Watts) - Manufacture Series	3W
Voltage - Isolation	1.5kV (1500V)
Applications	ITE (Commercial)
Features	OCP, OVP, SCP, UVLO
Mounting Style	Through Hole
Package	24-DIP Module (7 Leads)
Size / Dimension	1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 10.0mm)
Operating Temperature Range	-40°C ~ 100°C
Efficiency	75%
Power (Watts) - Max	3W
Win Source Part Number	125510-JCA0348S15
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian JCA0348S15 CAD Model

Alternative Products

Description

The XP Power 125510-JCA0348S15 is a DC-DC converter module that is designed to provide 15V output voltage with a maximum output current of 200mA.

Output Voltage: 15V
Output Current: 200mA
Package: 24-DIP module with 7 leads
Size: 1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 10.0mm)
Features: OCP, OVP, SCP, and UVLO
Efficiency: 75%
Power Rating: 3W
Application: ITE (Commercial)
Voltage Isolation: 1.5kV (1500V)
