Same model may have multiple batches, images only for reference.

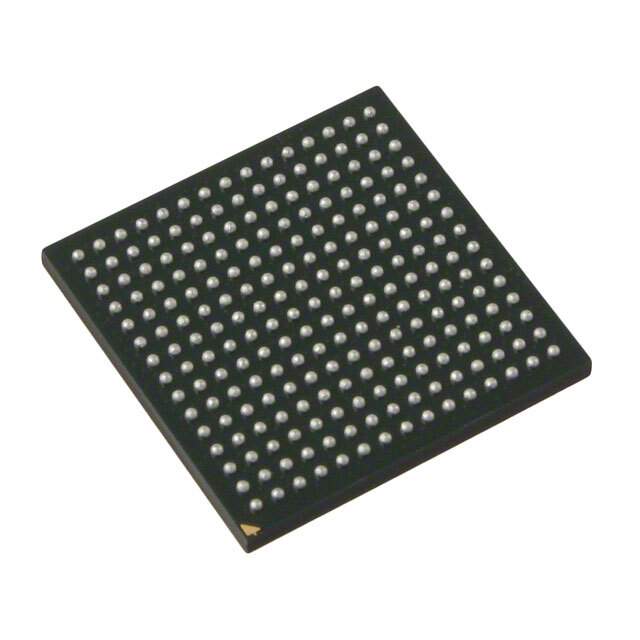

XC6SLX9-N3CSG225C Real Image
Same model may have multiple batches, images only for reference.

XC6SLX9-N3CSG225C

Part No XC6SLX9-N3CSG225C
Manufacturer Xilinx Inc.
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 160 I/O 225CSBGA / Spartan®-6 LX Field Programmable Gate Array (FPGA) IC 160 589824 9152 225-LFBGA, CSPBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>FPGAs (Field Programmable Gate Array)
Manufacturer AMD Xilinx
Packaging Tray
Number of LABs/CLBs 715
Number of Logic Elements/Cells 9152
Total RAM Bits 589824
Number of I/O 160
Voltage - Supply 1.14V ~ 1.26V
Mounting Surface Mount
Temperature Range - Operating 0°C ~ 85°C (TJ)
Case / Package 225-LFBGA, CSPBGA
Supplier Device Package 225-CSPBGA (13x13)
Base Product Number XC6SLX9
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 160
Win Source Part Number 1318231-XC6SLX9-N3CSG225C
Ultra Librarian 3D Model Ultra Librarian XC6SLX9-N3CSG225C CAD Model

Description

The AMD Xilinx XC6SLX9-N3CSG225C is an FPGA.

  • LABs/CLBs: 715
  • Logic Elements/Cells: 9152
  • Total RAM Bits: 589824
  • Voltage Supply: 1.14V to 1.26V
  • Package: 225-CSPBGA (13x13)
  • Temperature Range: 0°C to 85°C (TJ)
  • I/Os: 160
  • Packaging: Tray
  • Mounting: Surface Mount
