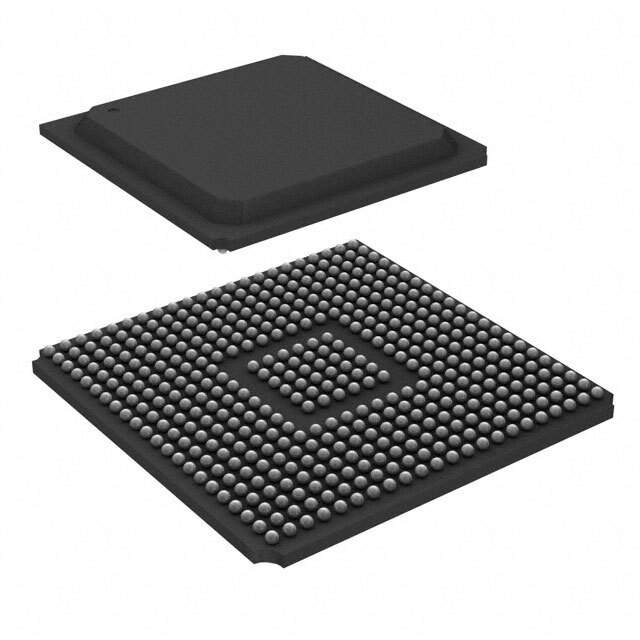

XC3S1500-5FGG456C Real Image XC3S1500-5FGG456C real image
Same model may have multiple batches, images only for reference.

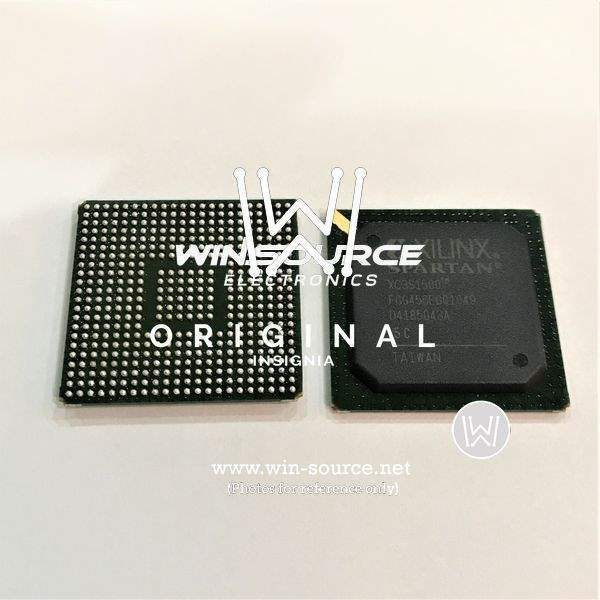

XC3S1500-5FGG456C Real Image XC3S1500-5FGG456C real image
XC3S1500-5FGG456C Real Image XC3S1500-5FGG456C real image
Same model may have multiple batches, images only for reference.

XC3S1500-5FGG456C

Part No XC3S1500-5FGG456C
Manufacturer Xilinx Inc.
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 333 I/O 456FBGA / FPGA Spartan®-3 Family 1.5M Gates 29952 Cells 725MHz 90nm Technology 1.2V 456-Pin FBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Xilinx Inc.
Series Spartan-3
Number of LABs/CLBs 3328
Number of Logic Elements/Cells 29952
Total RAM Bits 589824
Number of I/O 333
Number of Gates 1500000
Operating Supply Voltage 1.14 V ~ 1.26 V
Mounting SMD
Operating Temperature Range 0°C ~ 85°C (TJ)
Package 456-BBGA
Manufacturer Package 456-FBGA (23x23)
Win Source Part Number 799671-XC3S1500-5FGG456C
Popularity Medium
Supply and Demand Status Limited
Family Name XC3S1500
Introduction Date April 09, 2002
ECCN 3A991.d
Country of Origin Philippines, Republic of Korea, Taiwan
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian XC3S1500-5FGG456C CAD Model

Description

The Xilinx XC3S1500-5FGG456C is a Spartan-3 series FPGA that operates in the temperature range of 0°C to 85°C.

  • Package: 456-BBGA
  • Mounting Type: SMD
  • Operating Supply Voltage: 1.14 V to 1.26 V
  • I/Os: 333
  • LABs/CLBs: 3328
  • Logic Elements/Cells: 29952
  • Total RAM Bits: 589824
  • Gates: 1500000
  • Family Name: XC3S1500
  • Category: Integrated Circuits (ICs)
  • Manufacturer Package: 456-FBGA (23x23)
  • Supply and Demand Status: Limited
