SUCS102405C

Part No SUCS102405C
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V / Isolated Module DC DC Converter 1 Output 5V 2A 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Cosel USA, Inc.
Series SUCS (10W)
Package Box
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 2A
Voltage - Isolation 500 V
Applications ITE (Commercial)
Features Remote On/Off, OCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 85%
Mounting Type Through Hole
Package / Case 6-DIP Module
Dimension 1.58" L x 0.85" W x 0.28" H (40.2mm x 21.5mm x 7.0mm)
Base Product Number SUCS102405
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1776-1580
Standard Package 1
Win Source Part Number 1016027-SUCS102405C
Ultra Librarian 3D Model Ultra Librarian SUCS102405C CAD Model

Description

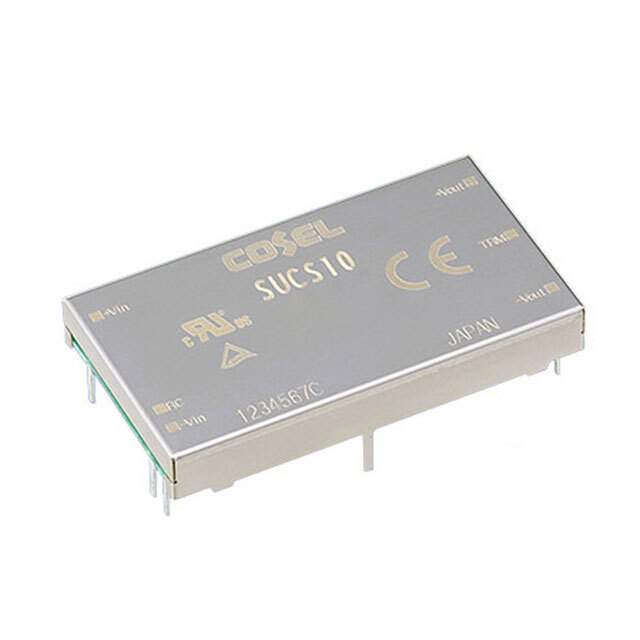

The Cosel USA SUCS series is an isolated module type power supply with remote on/off and OCP features.

  • Type: Isolated module
  • Features: Remote on/off and OCP
  • Package: Box package with a 6-DIP module
  • Application: Approved for ITE (commercial) applications
  • Voltage Isolation: 500 V
  • Output: One output with a voltage of 5V and a maximum current output of 2A
  • Input Voltage Range: 18V to 36V
  • Efficiency: 85%
  • Operating Temperature Range: -40°C to 85°C (with derating)
  • Dimension: 1.58" L x 0.85" W x 0.28" H (40.2mm x 21.5mm x 7.0mm)
