Same model may have multiple batches, images only for reference.

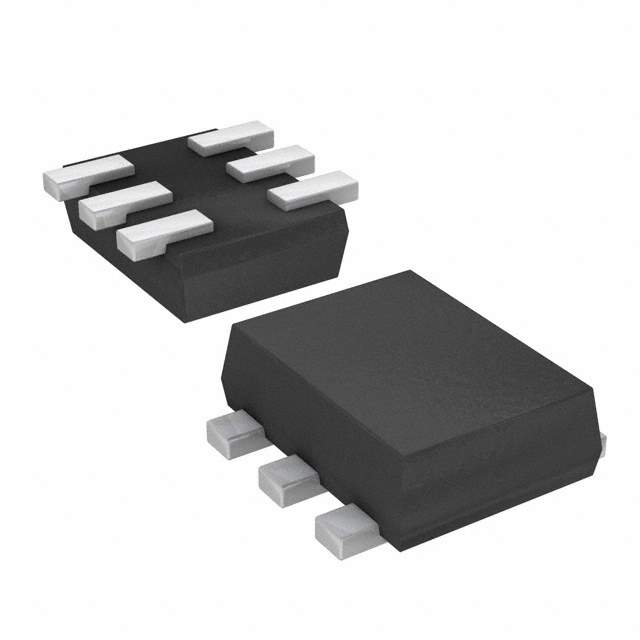

82400152 Real Image
Same model may have multiple batches, images only for reference.

82400152

Part No 82400152
Manufacturer Wurth Electronics Inc
Catalog TVS - Diodes
Description TVS Diode Array WE-TVS | TVS DIODE 5V 7.7V SOT563
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Wurth Electronics Inc.
Packaging Reel
Type Steering (Rail to Rail)
Unidirectional Channels 2
Voltage - Reverse Standoff 5V (Maximum)
Voltage - Breakdown (Minimum) 6V
Voltage - Clamping (Maximum) at Ipp 7.7V
Current - Peak Pulse (10/1000μs) 6A (8/20μs)
Power Line Protection Yes
Applications General Purpose
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package SOT-563, SOT-666
Supplier Device Package SOT-563
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Win Source Part Number 1133897-82400152
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 82400152 CAD Model

Description

The 1133897-82400152 is a steering type circuit protection device that is designed for general purpose applications.

  • Manufacturer: Wurth Electronics Inc.
  • Supply and Demand Status: Currently balanced
  • Mounting: Surface-mount device
  • Channels: Unidirectional
  • Protection: Power line protection
  • Voltage Rating: 5V
  • Breakdown Voltage: 6V
  • Description: A reliable and efficient device that can be used in a variety of applications.
