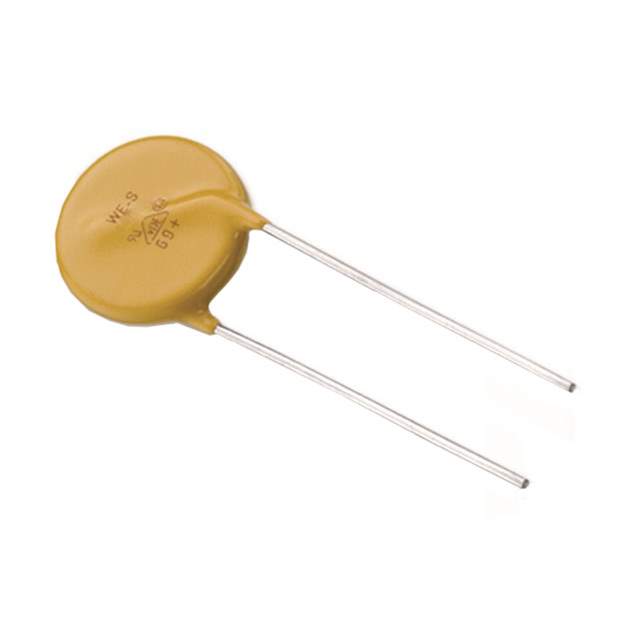

820512001 Real Image
Same model may have multiple batches, images only for reference.

820512001

Part No 820512001
Manufacturer Wurth Electronics Inc
Catalog TVS - Varistors, MOVs
Description WE-VD Series Metal Oxide Varistor 4.25nF 5A; Clamping 65V; Varistor 33V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 4.25 nF
Clamping Current 5 A
Clamping Voltage 65 V
Diameter 10 mm
Energy 4.4 J
Lead Pitch 7.5 mm
Max Operating Temperature 125 °C
Max Surge Current 500 A
Max Voltage Rating (AC) 20 V
Max Voltage Rating (DC) 26 V
Min Operating Temperature -40 °C
Mount Radial
REACH SVHC Unknown
RoHS Compliant
Termination Radial
Thickness 5.1 mm
Tolerance 10 %
Varistor Voltage 33 V
Voltage Rating (AC) 20 V
Voltage Rating (DC) 26 V
Weight 1.095993 g
Win Source Part Number 1149431-820512001
Categories TVS - Varistors,MOVs
Manufacturer Wurth Electronics Inc
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 820512001 CAD Model

Description

The 1149431-820512001 is a radial termination TVS - Varistor with a capacitance of 4.25 nF and a tolerance of 10%. Wurth Electronics Inc manufactures it.

  • Termination: Radial
  • Type: TVS - Varistor
  • Capacitance: 4.25 nF
  • Capacitance Tolerance: 10%
  • Clamping Voltage: 65 V
  • Varistor Voltage: 33 V
  • Thickness: 5.1 mm
  • Diameter: 10 mm
  • Energy: 4.4 J
  • Clamping Current: 5 A
  • Mounting Type: Radial
  • RoHS Compliant: Yes
  • Voltage Rating (AC): 20 V
  • Max Voltage Rating (AC): 20 V
  • Max Voltage Rating (DC): 26 V
  • Voltage Rating (DC): 26 V
  • Lead Pitch: 7.5 mm
  • Max Surge Current: 500 A
  • Min Operating Temperature: -40 °C
  • Max Operating Temperature: 125 °C
