Same model may have multiple batches, images only for reference.

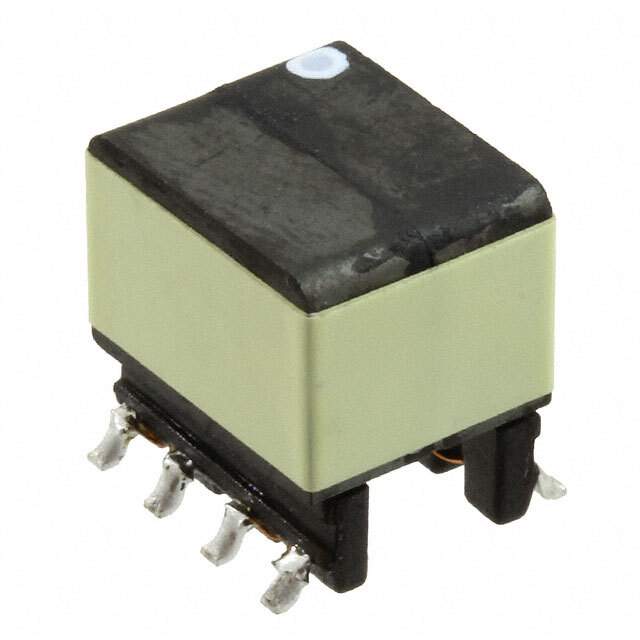

760301301 Real Image
Same model may have multiple batches, images only for reference.

760301301

Part No 760301301
Manufacturer Wurth Electronics Inc
Catalog Pulse Transformers
Description XFRMR GATE DRIVE SMD
Datasheet
760301301 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Estimated Pruduction Lead Time 32 Weeks
Manufacturer Wurth Electronics Inc
Series WE-GDT
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Part Number 732-5630-6, 732-5630-2, 732-5630-1
Quantity per package 350
Popularity High
Supply and Demand Status Balance
Win Source Part Number 908373-760301301
Ultra Librarian 3D Model Ultra Librarian 760301301 CAD Model

Description

The WE-GDT transformer from Wurth Electronics Inc is a high-quality transformer that is designed to operate @ a wide range of temperatures, from -40°C to 125°C.

  • Operating Temperature: -40°C to 125°C
  • Mounting: Surface Mount
  • Package: Reel
  • Series: WE-GDT
  • Category: Transformers
  • ECCN: EAR99
  • Supply and Demand Status: Balanced
  • Package Quantity: 350
  • MSL Level: 1
  • Estimated Production Lead Time: 32 weeks
  • REACH Status: Unaffected
  • HTSUS Code: 8504.31.2000
