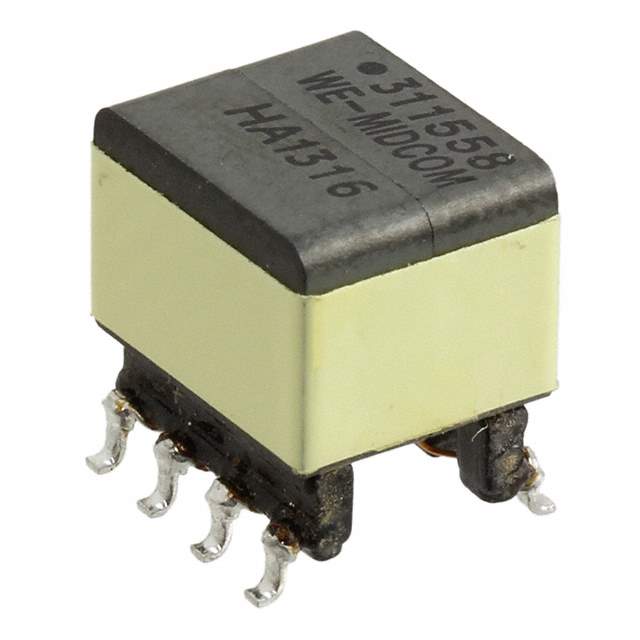

750311558 Real Image
Same model may have multiple batches, images only for reference.

750311558

Part No 750311558
Manufacturer Wurth Electronics Inc
Catalog Switching Converter, SMPS Transformers
Description FLYBACK TRANSFORMER WE-FB
Datasheet
750311558 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Estimated Pruduction Lead Time 20 Weeks
Features Flyback Converters For For DC/DC Converters SMPS Transformer 1500Vrms Isolation 200 ~ 300kHz Surface Mount
Manufacturer Wurth Electronics Inc
Series WE-FB, MID-FLYLT
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8504.31.2000
Other Part Number 1297-1004-6, 1297-1004-1, 1297-1004-2
Quantity per package 300
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 858122-750311558
Ultra Librarian 3D Model Ultra Librarian 750311558 CAD Model

Description

The 750311558 from Wurth Electronics Inc is a WE-FB, MID-FLYLT series flyback converter for DC/DC converters.

  • Feature: 1500Vrms isolation.
  • Mounting: Surface mount package.
  • Operating Temperature Range: -40°C to 125°C.
  • Design: Low profile design.
  • Supply: Currently in limited supply.
  • Estimated Production Lead Time: 20 weeks.
