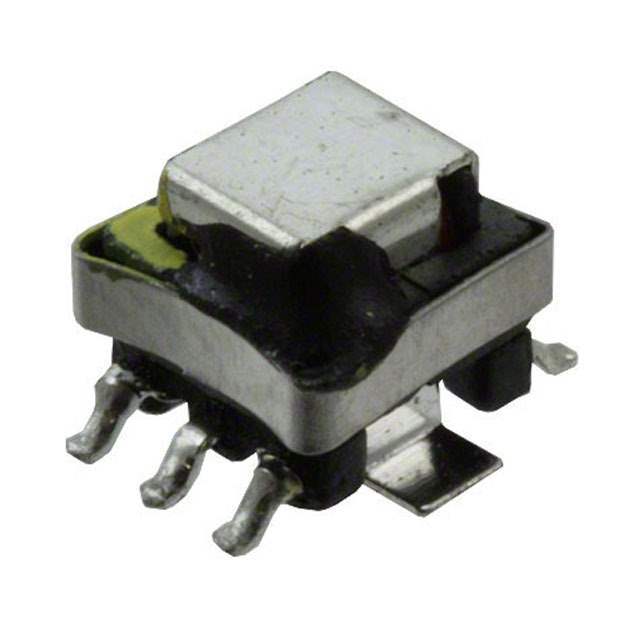

749251100Würth Elektronik
Same model may have multiple batches, images only for reference.

749251100

Part No 749251100
Manufacturer Wurth Electronics Inc
Catalog Current Sense Transformers
Description CURR SENSE XFMR 1:100 10A SMD
Datasheet
749251100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1207961-749251100
Manufacturer Würth Elektronik
Category Transformers- Current Sense Transformers
Series WE-CST
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Type Invasive
DC Resistance (DCR) 6mOhm Primary, 5.5Ohm Secondary
Mounting Type Surface Mount
Size / Dimension 0.303" L x 0.272" W (7.70mm x 6.90mm)
Height - Seated (Max) 0.210" (5.33mm)
Ultra Librarian 3D Model Ultra Librarian 749251100 CAD Model

Description

1:100 Current Sense Transformer 6mOhm Primary, 5.5Ohm Secondary 2 mH Surface Mount
