Same model may have multiple batches, images only for reference.

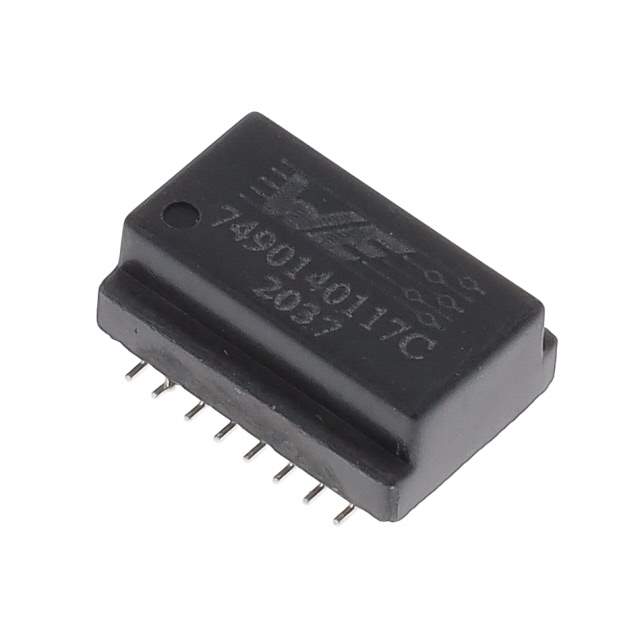

7490140117C Real Image
Same model may have multiple batches, images only for reference.

7490140117C

Part No 7490140117C
Manufacturer Wurth Electronics Inc
Catalog Pulse Transformers
Description XFMR LAN 10/100 BASE-T 1:1 350UH  /  350µH LAN 10/100 Base-T Pulse Transformer 1:1 Surface Mount
Datasheet
7490140117C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Würth Elektronik
Series WE-LAN
Package Tape & Reel
Transformer Type LAN 10/100 Base-T
Inductance 350µH
Mounting SMD (SMT)
Dimension 0.500" L x 0.346" W (12.70mm x 8.80mm)
Height - Seated (Max) 0.224" (5.70mm)
Temperature Range - Operating -40°C ~ 105°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Names 732-7490140117CTR,732-7490140117CCT,732-7490140117CDKR
Standard Package 750
Win Source Part Number 1211202-7490140117C
Ultra Librarian 3D Model Ultra Librarian 7490140117C CAD Model

Description

The WE-LAN transformer is a LAN 10/100 Base-T transformer with an inductance of 350µH.

  • Inductance: 350µH
  • Temperature Range: -40°C to 105°C
  • Package: Tape and reel
  • Mounting Type: SMD (SMT)
  • Dimension: 0.500" L x 0.346" W (12.70mm x 8.80mm)
  • Standard Package: 750 transformers
  • Manufacturer: Würth Elektronik
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8504.31.2000
  • MSL Level: 1 (Unlimited)
  • ET (Volt-Time): Not applicable
