Same model may have multiple batches, images only for reference.

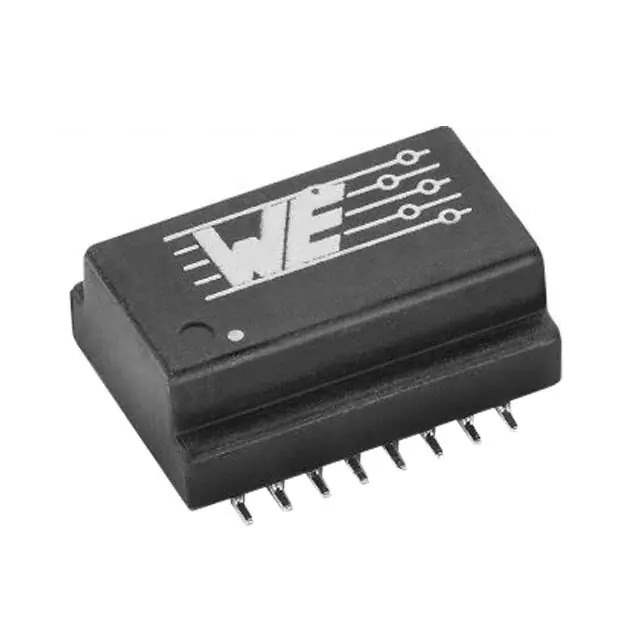

749010012A Real Image
Same model may have multiple batches, images only for reference.

749010012A

Part No 749010012A
Manufacturer Wurth Electronics Inc
Catalog Pulse Transformers
Description WE-LAN 10/100 BASE-T SMT TRANSFO / 350μH LAN 10/100 Base-T Pulse Transformer 1:1
Datasheet
749010012A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Wurth Electronics Inc
Series WE-LAN
Package Tape & Reel
Product Status Active
Transformer Type LAN 10/100 Base-T
Inductance 350µH
Size / Dimension 0.500" L x 0.346" W (12.70mm x 8.80mm)
Height - Seated (Max) 0.250" (6.35mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 600 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 844807-749010012A
Ultra Librarian 3D Model Ultra Librarian 749010012A CAD Model

Description

The WE-LAN series Pulse Transformers component is a LAN 10/100 Base-T transformer designed for Ethernet applications.

  • Application: Ethernet
  • Size Length: 0.500"
  • Size Width: 0.346"
  • Inductance: 350µH
  • Height: 0.250"
  • Standard Package: 600 pcs
  • Operating Temperature Range: 0°C to 70°C
  • Product Status: Active
  • Manufacturer: Wurth Electronics Inc
