Same model may have multiple batches, images only for reference.

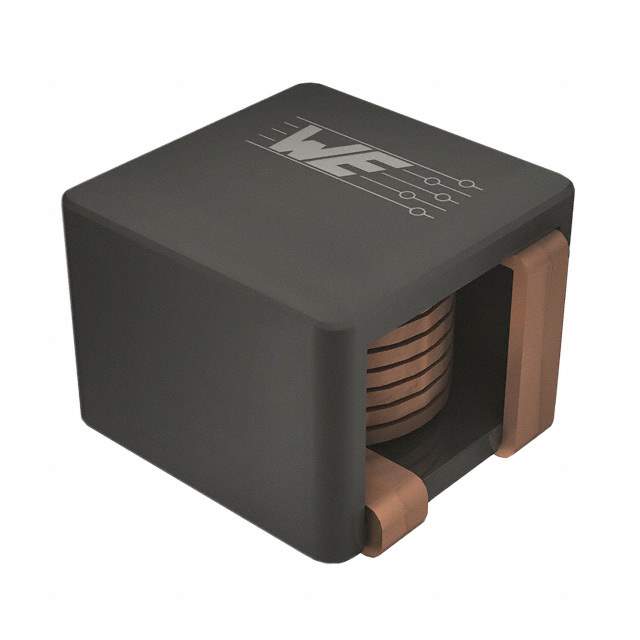

74485540290 Real Image
Same model may have multiple batches, images only for reference.

74485540290

Part No 74485540290
Manufacturer Wurth Electronics Inc
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 2.9UH SMD / Shielded 2 Coil Inductor Array 11.6 µH Inductance - Connected in Series 2.9 µH Inductance - Connected in Parallel 8.96mOhm Max DC Resistance (DCR) - Parallel 17 A 4-SMD
Datasheet
74485540290 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Manufacturer Würth Elektronik
Packaging Reel - TR
Number of Coils 2
Inductance - Connected In Parallel 2.9 µH
Inductance - Connected In Series 11.6 µH
Tolerance ±20%
Current Rating - Parallel 17 A
Current Rating - Series 8.5 A
Current Saturation - Parallel 29 A
Current Saturation - Series 14.5 A
DC Resistance (DCR) - Parallel 8.96mOhm Max
Shielding Shielded
Temperature Range - Operating -40°C ~ 150°C
Mounting Surface Mount
Case / Package 4-SMD
Size / Dimension 0.610" L x 0.520" W (15.50mm x 13.20mm)
Height 0.413" (10.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 732-4563-6,732-4563-1,732-4563-2
Standard Package 300
Win Source Part Number 1327642-74485540290
Ultra Librarian 3D Model Ultra Librarian 74485540290 CAD Model

Description

The 1327642-74485540290 from Würth Elektronik is a high-quality inductor, coil, choke that is designed to be mounted on a board.

  • Packaging: Reel - TR
  • Shielding: Shielded
  • Size/Dimension: 0.610" L x 0.520" W (15.50mm x 13.20mm)
  • Standard Package: 300
  • Mounting Style: Surface Mount
  • Tolerance: ±20%
  • Height: 0.413" (10.50mm)
  • Number of Coils: Two
  • Inductance (Series): 11.6 µH
  • Inductance (Parallel): 2.9 µH
  • Current Rating (Parallel): 17A
  • Current Rating (Series): 8.5A
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8504.50.4000
