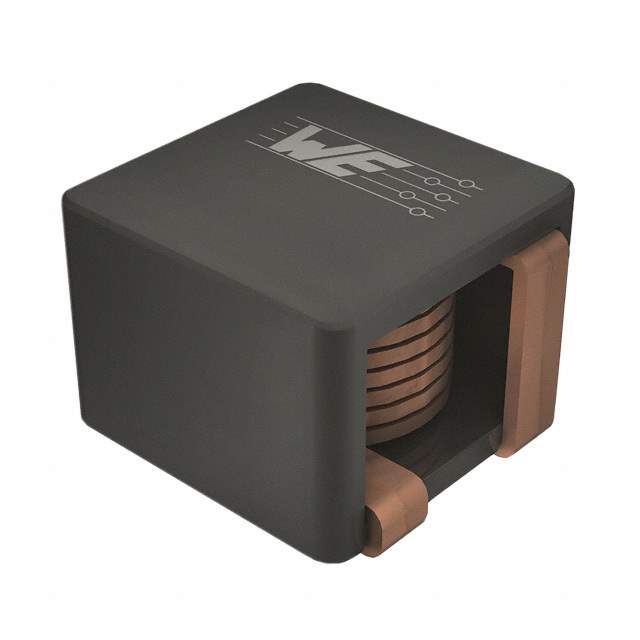

74485540170 Real Image1 74485540170 Real Image2
Same model may have multiple batches, images only for reference.
74485540170 Real Image1 74485540170 Real Image2
74485540170 Real Image1 74485540170 Real Image2
Same model may have multiple batches, images only for reference.

74485540170

Part No 74485540170
Manufacturer Wurth Electronics Inc
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 1.7UH SMD / Shielded 2 Coil Inductor Array 6.8 µH Inductance - Connected in Series 1.7 µH Inductance - Connected in Parallel 5.28mOhm Max DC Resistance (DCR) - Parallel 21 A 4-SMD
Datasheet
74485540170 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Wurth Electronics Inc
Series WE-CFWI
Package Tape & Reel
Number of Coils 2
Inductance - Connected In Parallel 1.7 µH
Inductance - Connected In Series 6.8 µH
Tolerance ±20%
Current Rating - Parallel 21 A
Current Rating - Series 10.5 A
Current Saturation - Parallel 39 A
Current Saturation - Series 19.5 A
DC Resistance (DCR) - Parallel 5.28mOhm Max
DC Resistance (DCR) - Series -
Shielding Shielded
Ratings -
Temperature Range - Operating -40°C ~ 150°C
Mounting Type Surface Mount
Package / Case 4-SMD
Size / Dimension 0.610" L x 0.520" W (15.50mm x 13.20mm)
Height 0.413" (10.50mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 300 pcs
Win Source Part Number 1381130-74485540170
Ultra Librarian 3D Model Ultra Librarian 74485540170 CAD Model

Description

The WE-CFWI series from Wurth Electronics Inc is a high-quality array of signal transformers designed for various electronic applications.

  • Shielding: Shielded
  • Packaging: Tape & Reel
  • Size: 0.610" L x 0.520" W (15.50mm x 13.20mm)
  • Number of Coils: 2
  • Series Inductance: 6.8 µH
  • Parallel Inductance: 1.7 µH
  • Series Current Rating: 10.5 A
  • Parallel Current Rating: 21 A
  • Maximum Height: 0.413" (10.50mm)
  • Parallel DC Resistance (DCR): 5.28mOhm max
  • Operating Temperature: -40°C to 150°C
  • Applications: Resonant Converters, Power Supplies
