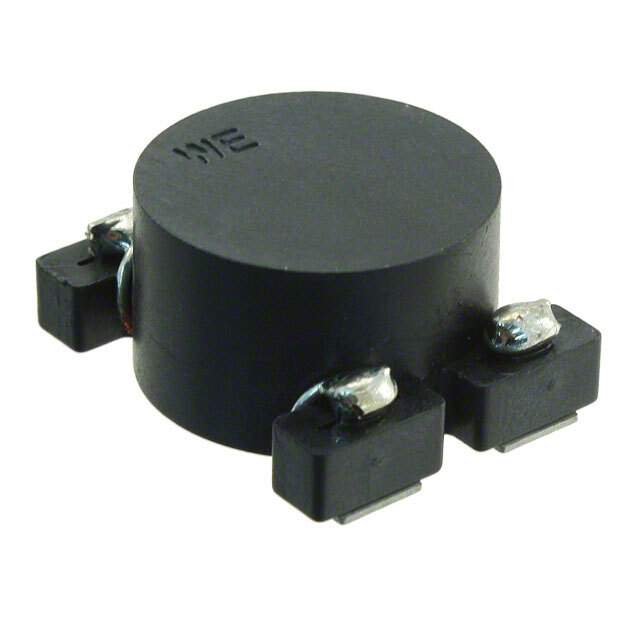

744851027 Real Image
Same model may have multiple batches, images only for reference.

744851027

Part No 744851027
Manufacturer Wurth Electronics Inc
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 270NH SMD
Datasheet
744851027 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Series WE-DCT
Packaging Reel package
Number of Coils 2
Test Inductance - Connected In Series 1.08μH
Inductance - Connected In Parallel 270nH
Tolerance ±20%
Current Rating - Parallel 12.3A
Current Rating - Series 6.15A
Current Saturation - Parallel 65A
Current Saturation - Series 32.5A
DC Resistance (DCR) - Parallel 5 mOhm Max
Shielding Shielded
Operating Temperature Range -40°C ~ 125°C
Mounting SMD
Package Nonstandard
Dimension 0.906" L x 0.728" W (23.00mm x 18.50mm)
Height 0.453" (11.50mm)
Win Source Part Number 762038-744851027
Popularity Medium
Supply and Demand Status Limited
Family Name 744851027
Introduction Date February 24, 2011
ECCN EAR99
Halogen Free Unknown
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 744851027 CAD Model

Description

The WE-DCT series from Wurth Electronics Inc. is a nonstandard inductor.

  • Package: Reel
  • Shielding: Yes
  • Mounting Type: SMD
  • Tolerance: ±20%
  • Height: 0.453" (11.50mm)
  • Number of Coils: 2
  • Inductance (Parallel): 270nH
  • Current Rating (Parallel): 12.3A
  • Current Rating (Series): 6.15A
  • Current Saturation (Parallel): 65A
  • Current Saturation (Series): 32.5A
  • DC Resistance (DCR) (Parallel): 5 mOhm Max
  • Family Name: 744851027
  • Categories: Inductors, Coils, Chokes
  • Dimension: 0.906" L x 0.728" W (23.00mm x 18.50mm)
  • Introduction Date: February 24, 2011
  • EOL Date: 2026
  • ECCN: EAR99
  • Halogen-Free Status: Unknown
  • Supply and Demand Status: Limited
