Same model may have multiple batches, images only for reference.

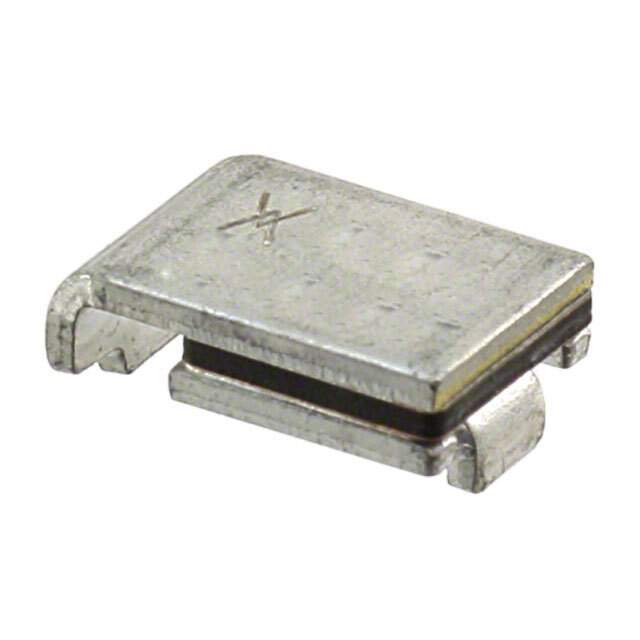

ASMD250F-2 Real Image
Same model may have multiple batches, images only for reference.

ASMD250F-2

Part No ASMD250F-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 1.97A HOLD
Datasheet
ASMD250F-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 16V
Current - Max 40A
Current - Hold (Ih) (Max) 1.97A
Current - Trip (It) 5A
Time to Trip 30s
Resistance - Initial (Ri) (Min) 35 mOhm
Resistance - Post Trip (R1) (Max) 85 mOhm
Temperature Range - Operating -40°C to 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.343" L x 0.250" W (8.70mm x 6.36mm)
Thickness (Max) 0.118" (3.00mm)
Win Source Part Number 123415-ASMD250F-2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ASMD250F-2 CAD Model

Description

ASMD250F-2 Electronic Component

The ASMD250F-2 stands out as a high-performance component ideal for circuit protection. Its robust construction ensures long-term reliability and effectiveness in safeguarding electronic systems.

  • Features and Benefits:
    • Fast response to overcurrent conditions
    • High breaking capacity
    • Extended lifecycle
    • Environmentally friendly materials
  • Applications/Projects:
    • Power supply units
    • Automotive electronics
    • Home appliances
  • Additional Details:
    • Compliance: Meets RoHS standards
    • Installation: Easy to mount with standard tools
